2012 Kia Forte LX, Automatic TransFACTORY OEM SERVICE PROCEDURE

Repair procedures: Removal

Place the shift lever into the "N" position.

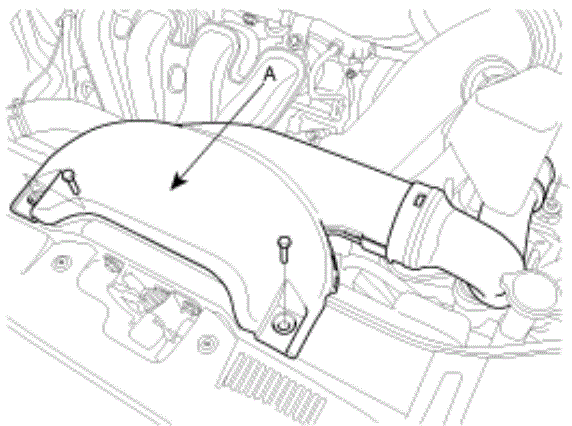

Remove the air duct (A).

Fig 1: Air Duct
Courtesy of KIA MOTORS AMERICA, INC.

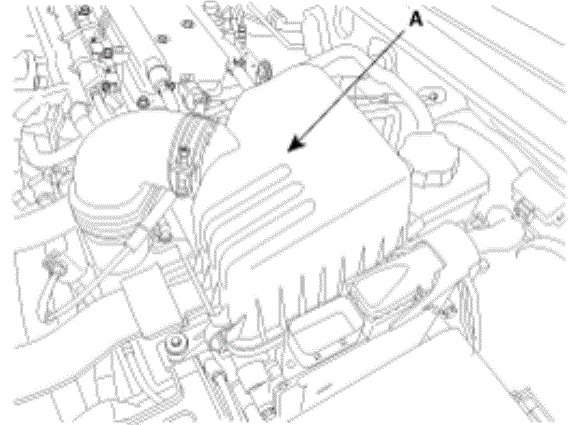

Remove the air cleaner assembly (A).

Fig 2: Air Cleaner Assembly
Courtesy of KIA MOTORS AMERICA, INC.

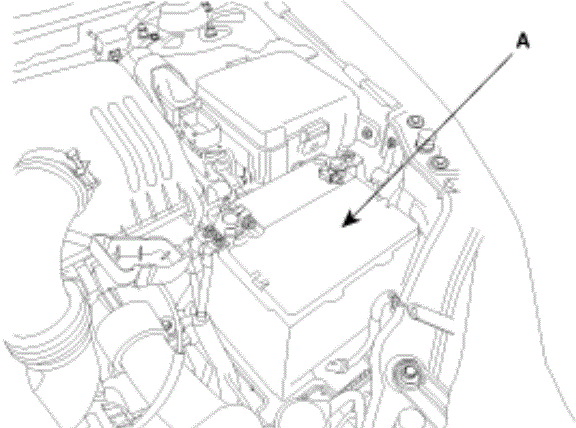

Remove the battery (A).

Fig 3: Battery
Courtesy of KIA MOTORS AMERICA, INC.

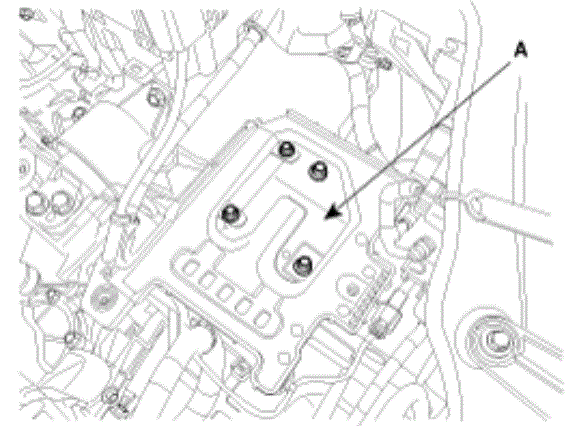

Remove the battery tray (A).

Fig 4: Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the inhibitor switch connector (A).
Remove the shift cable mounting nut (B).

Fig 5: Inhibitor Switch Connector & Shift Cable Mounting Nut

Courtesy of KIA MOTORS AMERICA, INC.

Remove the manual control lever (B) and the washer after removing a nut (A).

Fig 6: Manual Control Lever & Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the inhibitor assembly (A) after removing the bolts (2ea).

Fig 7: Inhibitor Assembly
Courtesy of KIA MOTORS AMERICA, INC.
