2012 Kia Forte LX, Automatic TransFACTORY OEM SERVICE PROCEDURE
Transmitter Code Registration (Using GDS)
- Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the GDS ON.

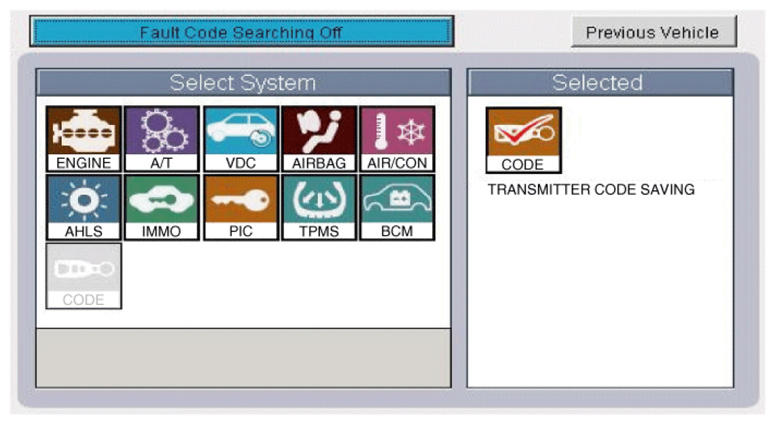

- Select the vehicle model and then do "CODE SAVING"

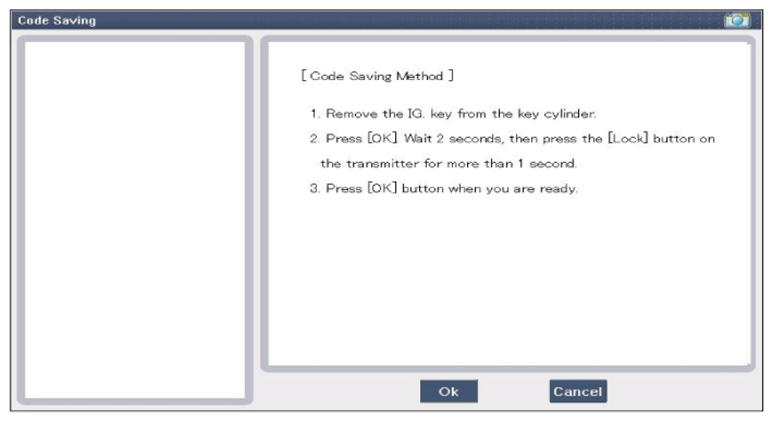

- After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

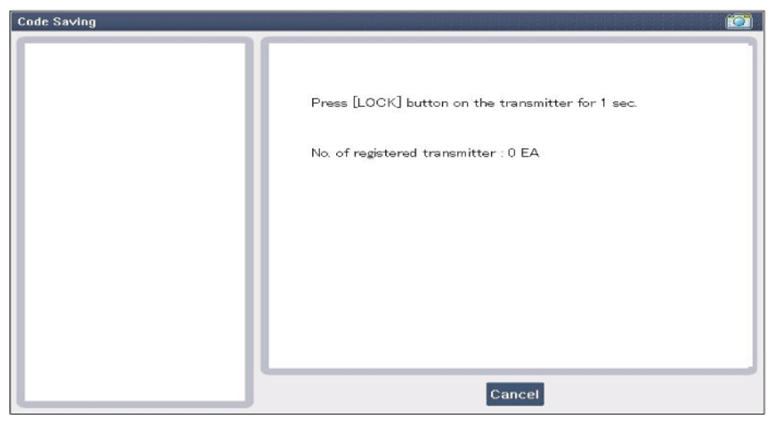

- After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.
