2012 Kia Forte L4-2.4LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Module
SD954-1 Smart Key Module System (1):

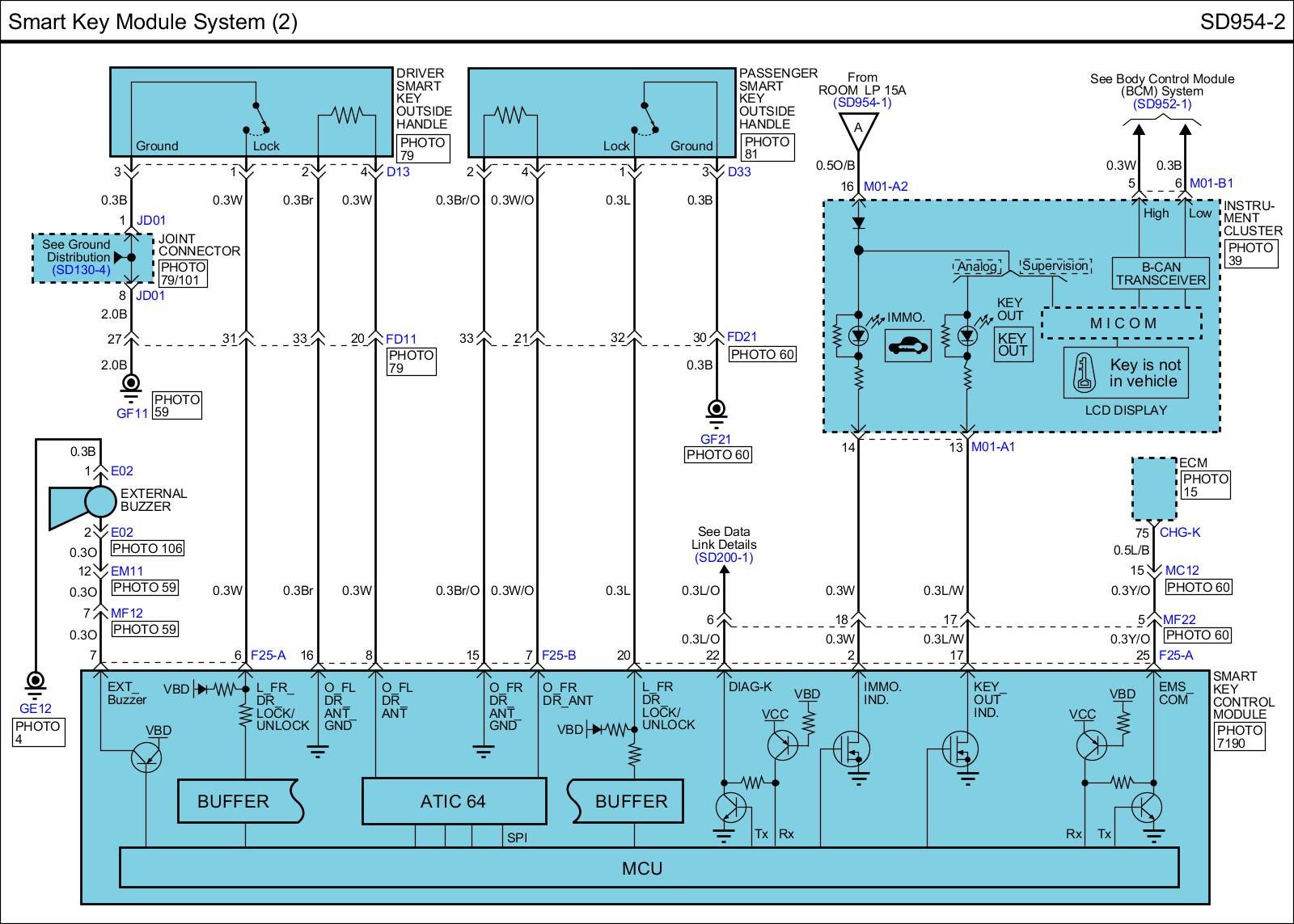

SD954-2 Smart Key Module System (2):
SD954-3 Smart Key Module System (3):

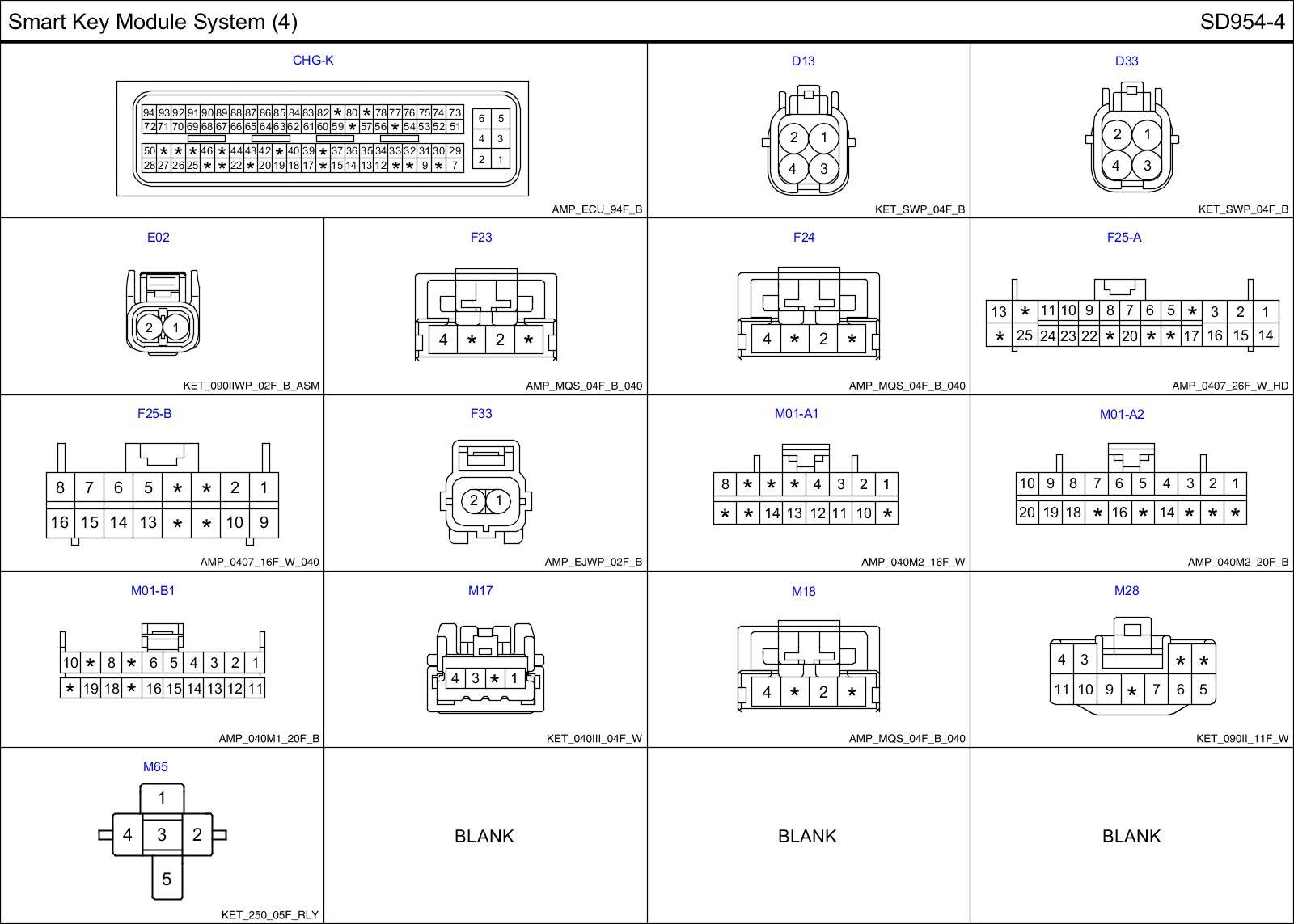

Smart Key Module System (4) Connector Pin Outs:
Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number
Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
