2012 Kia Forte L4-2.0LFACTORY OEM SERVICE PROCEDURE

Keyless Entry: Testing and Inspection





Inspection

Front Door Lock Actuator
1. Remove the front door trim.

2. Remove the front door module.

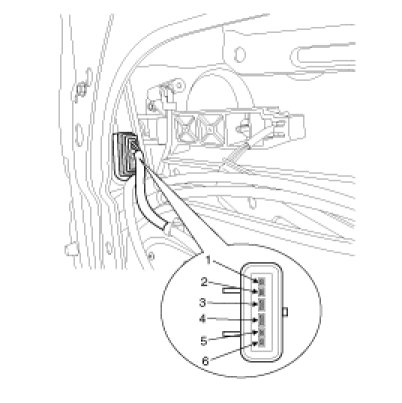

3. Disconnect the connectors from the actuator.

Factory service manual diagram



4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Factory service manual diagram




Rear Door Lock Actuator
1. Remove the rear door trim.

2. Remove the rear door module.

3. Disconnect the connectors from the actuator.

Factory service manual diagram



4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Factory service manual diagram




Trunk lid Lock Actuator Inspection
1. Remove the trunk trim.

2. Disconnect the 3P connector from the actuator.

Factory service manual diagram



3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Factory service manual diagram




Front Door Lock Switch
1. Remove the front door trim.

2. Remove the front door module.
.
3. Disconnect the connectors from the actuator.

Factory service manual diagram



4. Check for continuity between the terminals in each switch position when inserting the key into the door according to the table.

Factory service manual diagram




Rear Door Lock Switch
1. Remove the rear door trim.

2. Remove the rear door module.

3. Disconnect the connectors from the actuator.

Factory service manual diagram



4. Check for continuity between the terminals in each switch position according to the table.

Factory service manual diagram




Trunk lid Switch
1. Remove the trunk trim.

2. Disconnect the 3P connector from the actuator.

Factory service manual diagram



3. Check for continuity between the terminals in each switch position according to the table.

Factory service manual diagram




Door Switch
Remove the door switch and check for continuity between the terminals.

Factory service manual diagram




Factory service manual diagram




Key In Switch
1. Remove the crash pad lower panel.

2. Disconnect the 6P connector from the key warning switch(A).

Factory service manual diagram



3. Check for continuity between the terminals in each position according to the table.

Factory service manual diagram
