2011 Kia Soul L4-2.0LFACTORY OEM SERVICE PROCEDURE
Powertrain Management: Specifications
Specifications
Fuel Delivery System
Sensors
Manifold Absolute Pressure Sensor (MAPS)
- Type: Piezo-resistive pressure sensor type
- Specification
Intake Air Temperature Sensor (IATS)
- Type: Thermistor type
- Specification
Engine Coolant Temperature Sensor (ECTS)
- Type: Thermistor type
- Specification
Throttle Position Sensor (TPS)
- Type: Variable resistor type
- Specification
Heated Oxygen Sensor (HO2S)
- Type: Zirconia (ZrO2) type
- Specification
Camshaft Position Sensor (CMPS)
- Type: Hall effect type
Crankshaft Position Sensor (CKPS)
- Type: Hall effect type
Knock Sensor (KS)
- Type: Piezo-electricity type
- Specification
CVVT Oil Temperature Sensor (OTS)
- Type: Thermistor type
- Specification
Fuel Tank Pressure Sensor (FTPS)
- Type: Piezo-Resistive Pressure Sensor
- Specification
Actuators
Injector
- Number: 4
- Specification
Idle Speed Control Actuator (ISCA)
- Type: Double coil type
- Specification
Purge Control Solenoid Valve (PCSV)
- Specification
CVVT Oil Control Valve (OCV)
- Specification

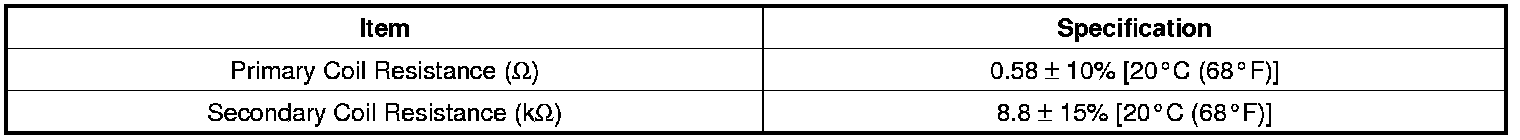

Ignition Coil
- Type: Double ended type
- Specification
Canister Close Valve (CCV)
- Specification
Service Standard
Tightening Torques
Engine Control System
Fuel Delivery System
