2011 Kia Soul BaseFACTORY OEM SERVICE PROCEDURE

Power Windows: Troubleshooting: Troubleshooting

No windows operate from the main switch on the driver's door.

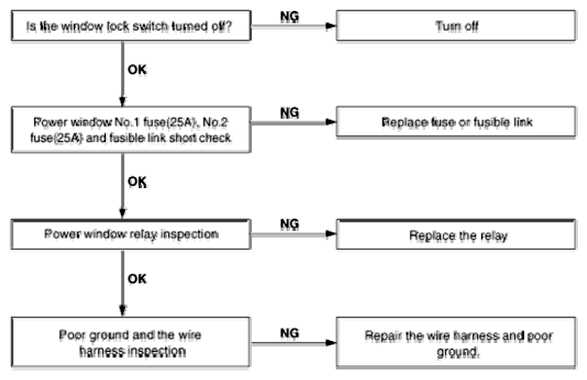

Fig 1: Troubleshooting Flow Chart - No Windows Operate From Main Switch On Driver's Door
Courtesy of KIA MOTORS AMERICA, INC.
Driver's side window does not operate.

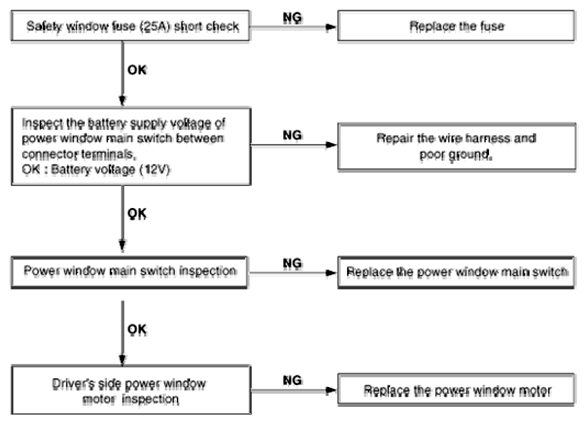

Fig 2: Troubleshooting Flow Chart - Driver's Side Window Does Not Operate
Courtesy of KIA MOTORS AMERICA, INC.
Passenger's side window does not operate.

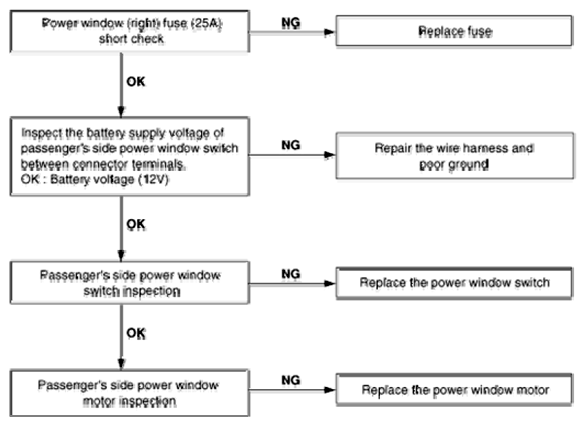

Fig 3: Troubleshooting Flow Chart - Passenger's Side Window Does Not Operate

Courtesy of KIA MOTORS AMERICA, INC.
