Trouble Diagnostics When Using Diagnosis Tool
- The body control system can be diagnosed by using the GDS.
The BCM communicates with the GDS which then displays inputs and outputs along with codes.

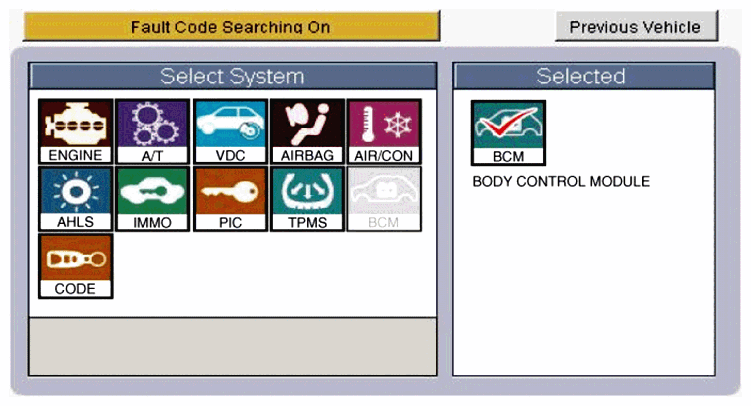

- To diagnose the BCM function, select the menu of model and body control module.

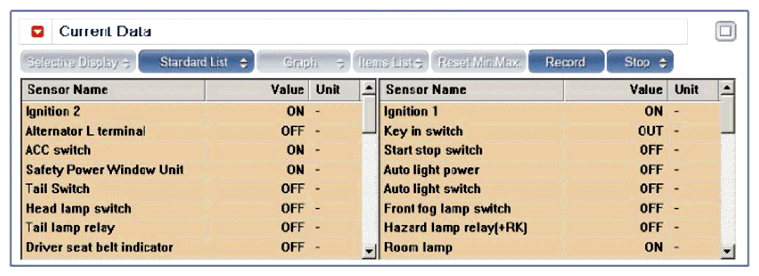

- To consult the present input/out value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door locks, outside mirror, wiper, auto-light and transmitters etc.

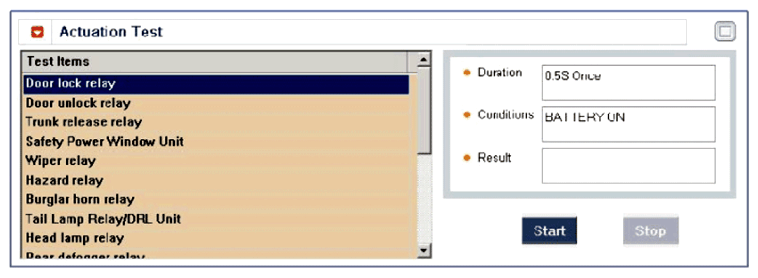

- To perform functional test on BCM outputs, select "ACTUATION TEST"
