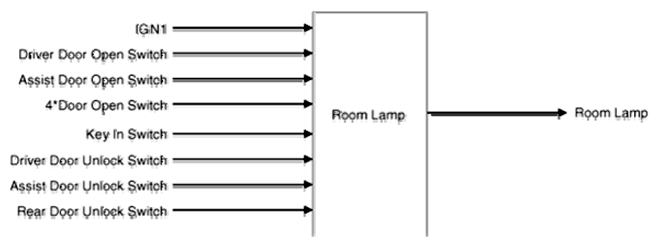

Interior Room Lamp

When removing or installing the Battery

1. Start Room Lamp on the state of 20min, if the DOOR is OPENED.
2. Start Room Lamp when it is OFF if the DOOR is CLOSED.

1. Condition 1
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp OFF and DOOR CLOSE
   Event	UNLOCK by TX (Transmitter) or key In ON → OFF
   Action	Room Lamp ON for 30± 3 sec.

2. Condition 2
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp OFF
   Event	Any DOOR OPEN for over 0.1 sec. when ALL DOORS are closed
   Action	ROOM LAMP ON for 20 min

3. Condition 3
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp OFF and IGN1 OFF
   Event	IGN1 ON and DOOR OPEN for over 0.1 sec.
   Action	ROOM LAMP ON

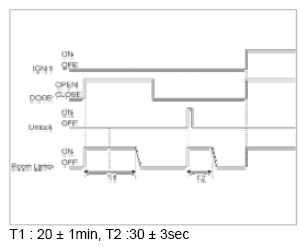

Fig 2: Room Lamp Off Time Chart

Courtesy of KIA MOTORS AMERICA, INC.

1. Condition 1
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP ON for 30s and IGN1 OFF
   Event	DOOR OPEN for over 0.1 sec. when ALL DOORS are closed.
   Action	ROOM LAMP ON for 20min

2. Condition 2
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP ON for 30s and IGN1 OFF
   Event	UNLOCK by TX
   Action	ROOM LAMP ON for 30s

3. Condition 3
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP ON for 30s and IGN1 OFF
   Event	IGN1=ON, or after 30sec, or ALL DOOR UNLOCK → LOCKED or TX LOCK & ALL DOORS CLOSED & ALL DOOR LOCKED
   Action	The state go to  ROOM LAMP DECAYING state for 2 ± 0.2 sec and OFF

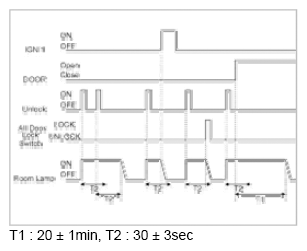

Fig 3: Room Lamp On for 30s Time Chart

Courtesy of KIA MOTORS AMERICA, INC.

1. Condition 1
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp ON for 20min and IGN1 OFF
   Event	IGN1 ON
   Action	ROOM LAMP ON

2. Condition 2
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp ON for 20min and IGN1 OFF
   Event	DOOR CLOSE and ALL DOOR LOCK Or after 20min
   Action	ROOM LAMP DECAYING for 2 ± 0.2 sec and OFF

3. Condition 3
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP ON for 20min and IGN1 OFF
   Event	DOOR CLOSE
   Action	ROOM LAMP ON for 30s

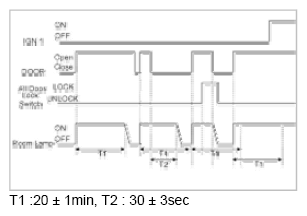

Fig 4: Room Lamp On for 20 Min Time Chart

Courtesy of KIA MOTORS AMERICA, INC.

1. Condition 1
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP DECAYING and IGN1 OFF
   Event	DOOR OPEN for over 0.1 sec. when All doors are closed
   Action	ROOM LAMP ON for 20min

2. Condition 2
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP DECAYING and IGN1 OFF and DOOR CLOSE
   Event	UNLOCK by TX
   Action	ROOM LAMP ON for 30s

3. Condition 3
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP DECAYING
   Event	After decaying
   Action	ROOM LAMP OFF

4. Condition 4
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	ROOM LAMP DECAYING
   Event	IGN1 ON and DOOR OPEN for 0.1 sec.
   Action	ROOM LAMP ON

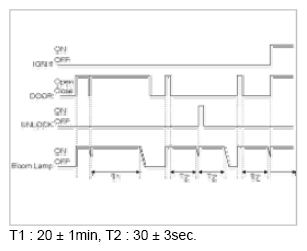

Fig 5: Room Lamp Decaying Time Chart

Courtesy of KIA MOTORS AMERICA, INC.

1. Condition 1
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp ON and IGN1 ON and DOOR OPEN
   Event	DOOR CLOSE
   Action	ROOM LAMP DECAYING for 2 ± 0.2 sec. and OFF

2. Condition 2
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp ON and IGN1 ON and DOOR OPEN
   Event	IGN1 OFF
   Action	ROOM LAMP ON for 20min

3. Condition 3
   STATE AND DESCRIPTION CHART



   State	Description
   Initial condition	Room Lamp ON and IGN1 ON and DOOR OPEN
   Event	DOOR CLOSE and IGN1 OFF
   Action	ROOM LAMP ON for 30s

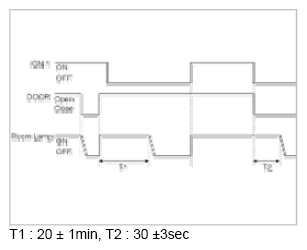

Fig 6: Room Lamp On Time Chart

Courtesy of KIA MOTORS AMERICA, INC.
