2011 Kia Sorento Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Special Service Tools
SPECIAL SERVICE TOOLS REFERENCE CHART
| Tool (Number and Name) | Illustration | Application |
|---|---|---|
| Fuel Pressure Gauge (09353-24100) |
Measuring the fuel line pressure | |
| Fuel Pressure Gauge Adapter (09353-38000) |
Connection between the delivery pipe and the fuel feed line | |
| Fuel Pressure Gauge Connector (09353-24000) |
Connection between the Fuel Pressure Gauge (09353-24100) and the Fuel Pressure Gauge Adapter (09353-38000) | |
| Heated Oxygen Sensor Socket Wrench (09392-2H100) |
Removal and installation of the heated oxygen sensor | |

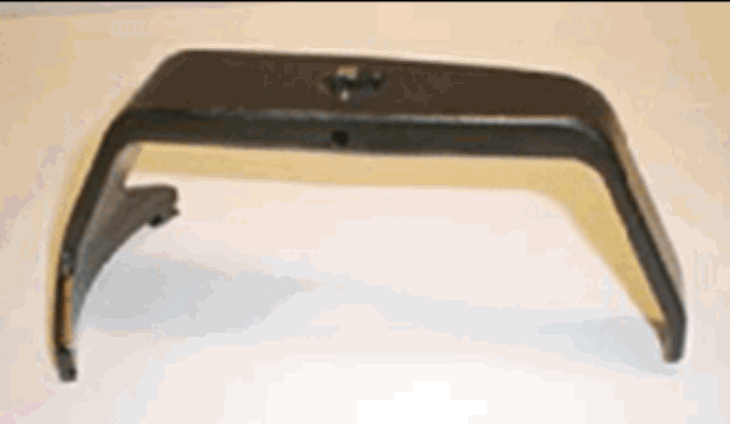

| Fuel Pump Locking Ring Remover * This tool can be purchased from KMA or Other tool supplier. (Not Mobis) |
Removal and installation of the fuel pump (or sub fuel sender) locking ring |
