2011 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Disassembly

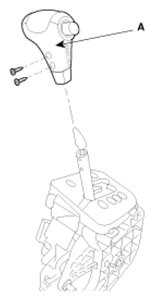

  1. Remove the shift lever knob (A) by removing the two screws.
    Fig 1: Shift Lever Knob
    G07389056Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the solenoid connector (A) and remove the indicator panel (B).
    Fig 2: Solenoid Connector & Indicator Panel
    G07389057Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the switch assembly (A) and 'P' position switch assembly.
    Fig 3: Switch Assembly
    G07389058Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the solenoid (B) and solenoid lever (A).
    Fig 4: Solenoid & Solenoid Lever
    G07389059Courtesy of KIA MOTORS AMERICA, INC.

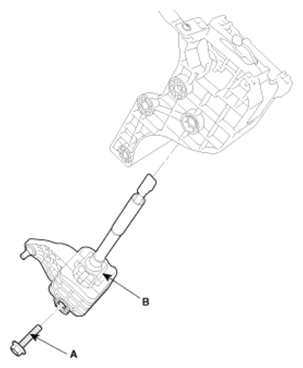

  5. Remove the lever assembly (B) by the mounting bolt (A).
    Fig 5: Lever Assembly & Mounting Bolt
    G07389060Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the lever (A) and tube (B) by removing the bolt (C).
    Fig 6: Lever, Tube & Bolt
    G07389061Courtesy of KIA MOTORS AMERICA, INC.
