Repair Procedures: Removal
(CVVT Oil Control Valve (Intake))
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold. Refer to INTAKE AND EXHAUST SYSTEM .
- Disconnect the CVVT oil control valve connector (A).
- Remove the installation bolt (B), and then remove the valve from the engine.

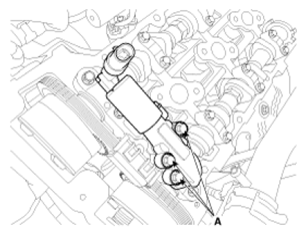

(Bank 1)

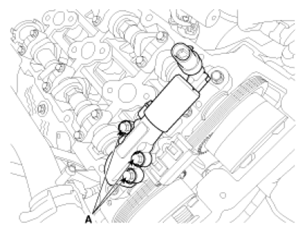

(Bank 2)
(CVVT Oil Control Valve (Exhaust))
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Disconnect the CVVT oil control valve connector (A).
(Bank 1)
Courtesy of KIA MOTORS AMERICA, INC.
(Bank 2)
- Remove the cylinder head cover. Refer to CYLINDER HEAD ASSEMBLY .
- Remove the installation bolt (A), and then remove the valve from the engine.
(Bank 1)
(Bank 2)
