Control Assembly: Testing and Inspection

Self-diagnosis

1. Self-diagnosis process
The F.A.T.C. module self test feature will detect electrical malfunction and provide error codes for system components with suspected failures.





NOTE:
DTC data can be retrieved from the control panel directly or from the DLC using the Hi-Scan Pro.

2. How to read self-diagnostic code

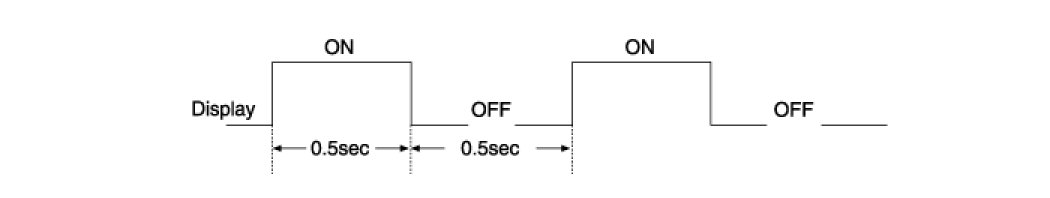

After the display panel flickers three times every 0.5 second, the corresponding fault code flickers on the setup temperature display panel every 0.5 second and will show two figures. Codes are displayed in numerical format.
Fault code





3. Fault code display
(1) Continuance operation : Normal or one fault code




(2) Continuance operation : DTC code is more two




(3) Step operation
A. Normal or one fault code is same a continuance
B. DTC code is more two




4. If fault codes are displayed during the check, Inspect malfunction causes by referring to fault codes.
5. Fail safe
(1) Incar sensor : Control with the value of 23°C(73.4°F)
(2) Ambient temperature sensor: Control with the value of 20°C(67°F)
(3) Evaporator temperature sensor: Control with the value of -2°C(28.4°F)
(4) Temperature control actuator (Air mix potentiometer):
If temperature setting LO-24.5°C, fix at maximum cooling position.
If temperature setting 25°C-HI, fix at maximum heating position
(5) Mode control actuator (Direction potentiometer):
Fix vent position, while selecting vent mode.
Fix defrost position, while selecting all except vent mode.
(6) Intake control actuator :
Fix fresh position, while selecting fresh mode.
Fix recirculation position, while selecting recirculation mode.
