2010 Kia Forte L4-2.4LFACTORY OEM SERVICE PROCEDURE
Programming and Relearning
Smart Key
Smart Key Code Saving
1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
2. Select the vehicle model and then do "Smart key code saving".
3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
4. After inserting the teaching key, push "ENTER" key.
5. Input the "Pin code" for first key teaching.
6. Confirm the message "First key teaching completed".
7. Input the "Pin code" for second key teaching.
8. Confirm the message "Second key teaching completed".

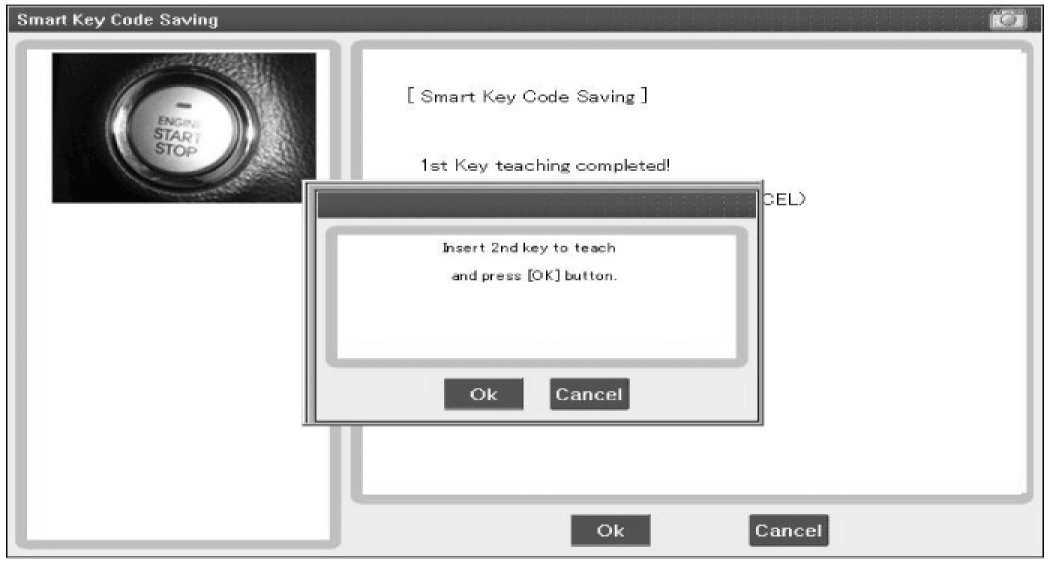

9. Then the screen will be shown as below when key teaching process is completed.
