Service Precautions

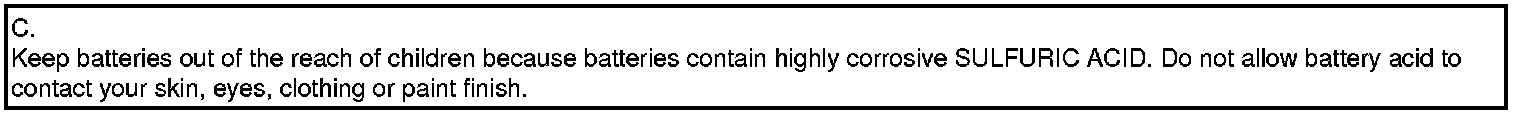

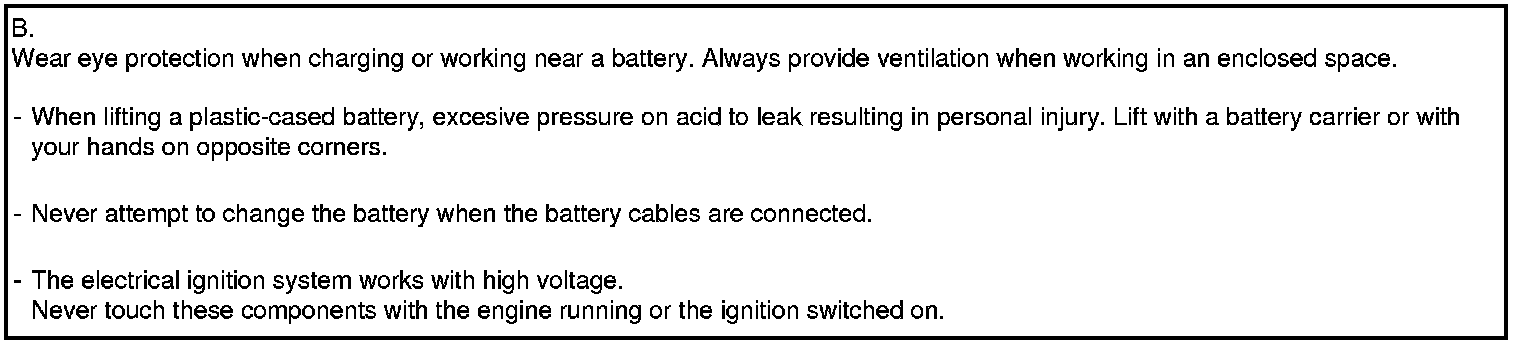

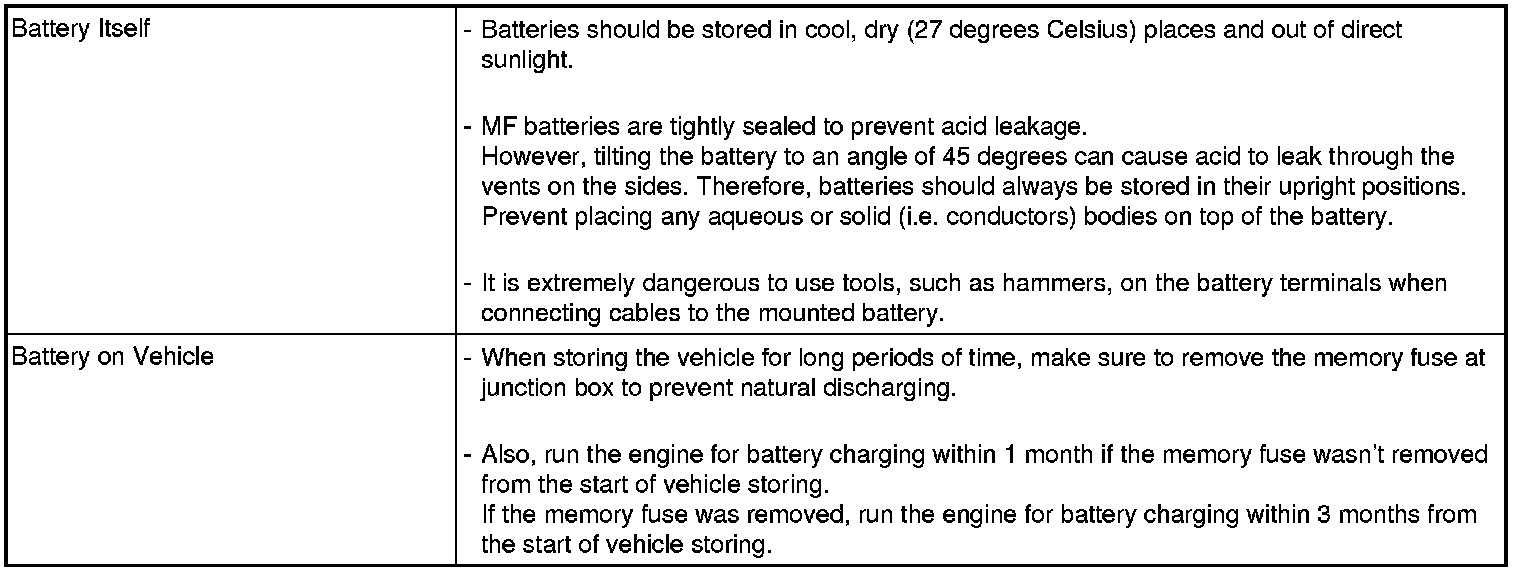

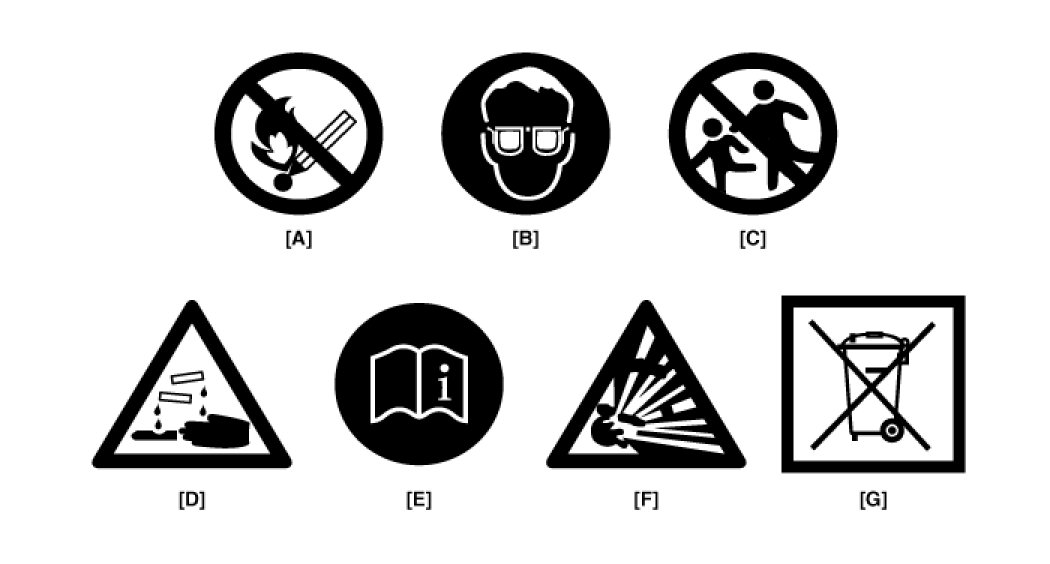

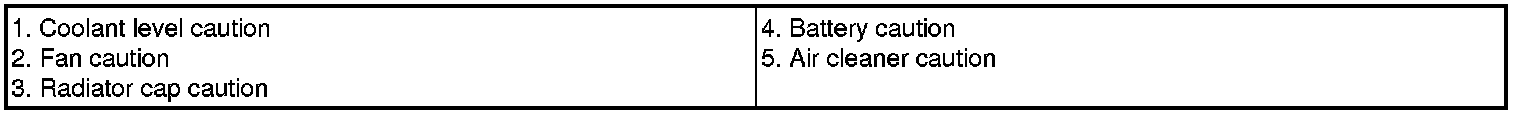

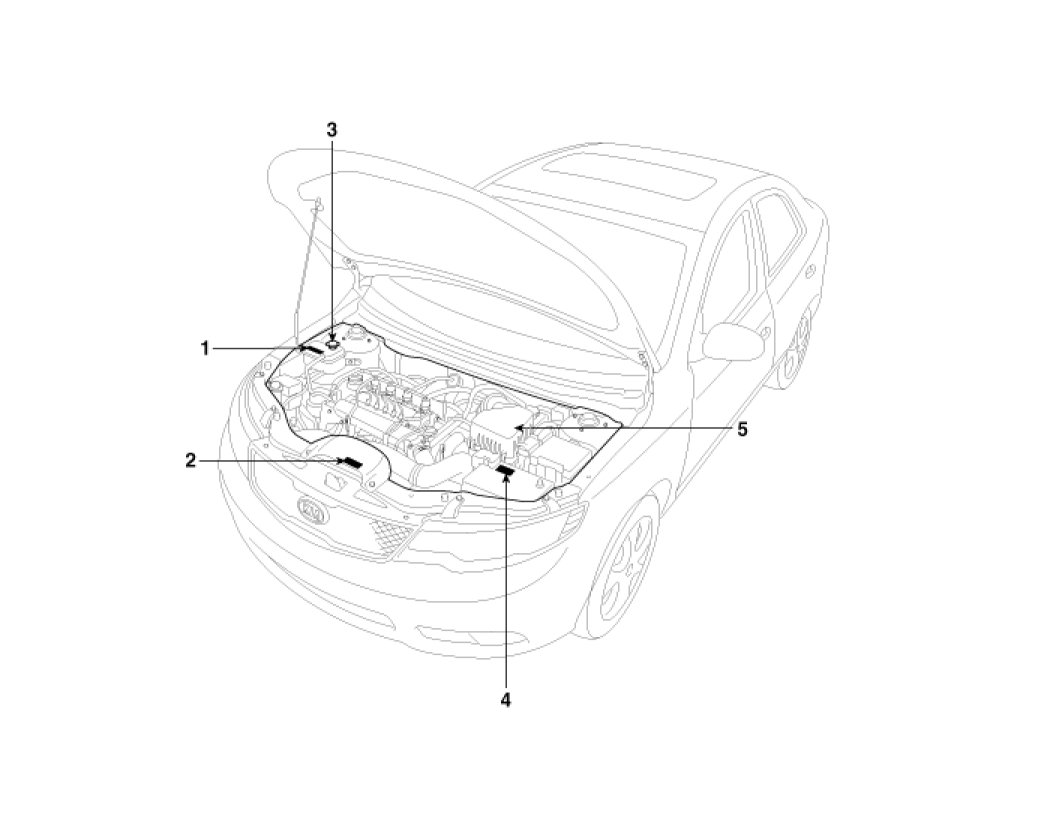

2010 Kia Forte L4-2.0L Service Manual : Service Precautions Warning / Caution Label Locations [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996885266/] [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996968366/] Battery Caution Label Description [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996539972/] Warning / Caution Label (Cont'd) [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996969417/] [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996970229/] [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996974582/] [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996976174/] [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996979259/] [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996980002/] [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996981012/] Handling And Storage The Battery [IMAGE: http://127.0.0.1:8080/images/IMP11Q313/asian320/1996982325/] NOTE: After reconnecting or recharging a discharged battery, the ESC OFF indicator may illuminate. In this case, turn the handle half way to the left and right whilst the ignition switch is in the ON position. Then, restart the engine after the ignition is OFF. The ESC OFF indicator may turn OFF. If the ESC OFF indicator does not turn OFF, have the system checked refering to DTC.
