2010 Kia Forte L4-2.0LFACTORY OEM SERVICE PROCEDURE
Repair procedures
Removal
1. Remove the battery terminal.
2. Remove the battery and battery tray.
3. Remove the air duct.
4. Remove the air cleaner assembly.
5. Disconnect the inhibitor switch connector (A).

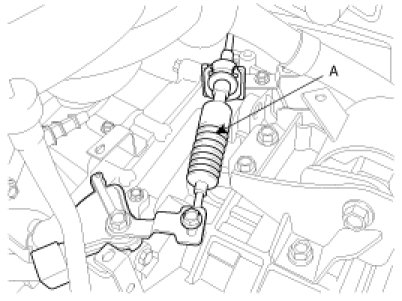

6. Remove the control cable(A) from the manual control lever.
7. Remove the inhibitor switch and manual control lever.
Installation
1. Set the inhibitor switch to the "N" position.
2. Set the inhibitor switch control shaft to the "N" position.
3. Install the inhibitor switch and manual control lever.
Tightening torque :
Shaft nut: 17 - 21Nm(1.7 - 2.1kgf.m, 12 - 15lb-ft)
Bolt(2EA): 10 - 12Nm(1.0 - 1.2kgf.m, 7 - 8lb-ft )
4. Install the control cable (A) to the manual control lever.
5. Connect the inhibitor switch connector (A).
6. Installation is the reverse of the removal.
7. Turn the ignition switch ON after installation.
Move the shift lever from "P" range to "L" range, and verify that the A/T gear position indicator follows the transaxle range switch.
