2010 Kia Forte EX, AutomaticFACTORY OEM SERVICE PROCEDURE
Repair procedures: Removal
CAUTION:
- Removal of the airbag must be performed according to the precautions/procedures (Refer to AIRBAG MODULE (RESTRAINTS - ADVANCED) ).
- Before disconnecting the front impact sensor connector, disconnect the front airbag connector (s).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

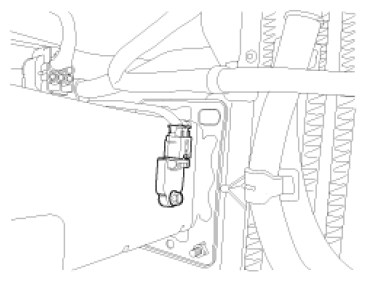

- Disconnect the Front Impact Sensor connector.
- Remove the Front Impact Sensor mounting bolt.
- Remove the Front Impact Sensor.
