2009 Kia Spectra LX, 2.0 2FACTORY OEM SERVICE PROCEDURE

Connector Inspection Procedure

Handling of Connector
1. Never pull on the wiring harness when disconnecting connectors.

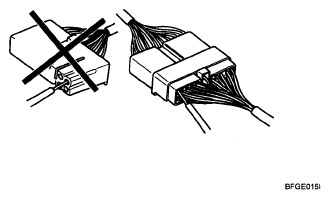

  Fig 1: Caution For Never Pulling On Wiring Harness
  Courtesy of KIA MOTORS AMERICA, INC.
2. When removing the connector with a lock, press or pull locking lever.

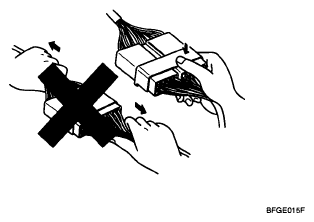

  Fig 2: Locating Locking Lever
  Courtesy of KIA MOTORS AMERICA, INC.
3. Listen for a click when locking connectors. This sound indicates that they are securely locked.

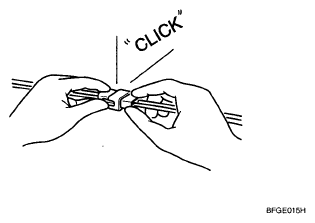

  Fig 3: Pressing Locking Lever
  Courtesy of KIA MOTORS AMERICA, INC.
4. When a tester is used to check for continuity, or to measure voltage, always insert tester probe from wire harness side.

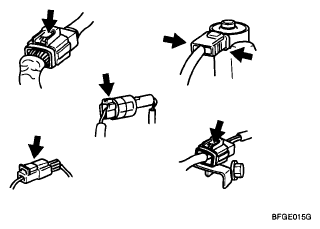

  Fig 4: Caution For Inserting Tester Probe From Wire Harness Side
  Courtesy of KIA MOTORS AMERICA, INC.
5. Check waterproof connector terminals from the connector side. Waterproof connectors cannot be accessed from harness side.
  NOTE:
  - Use a fine wire to prevent damage to the terminal.
  - Do not damage the terminal when inserting the tester lead.
