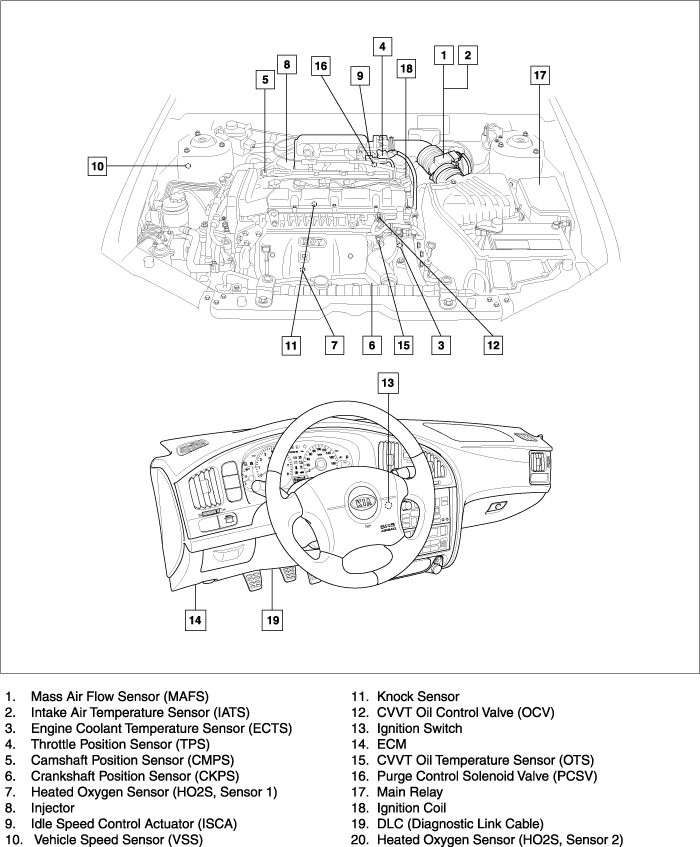

Components Location
1. Mass Air Flow Sensor (MAFS)
2. Intake Air Temperature Sensor (IATS)
3. Engine Coolant Temperature Sensor (ECTS)
4. Throttle Position Sensor (TPS)
9. Idle Speed Control Actuator (ISCA)
5. Camshaft Position Sensor (CMPS)
6. Crankshaft Position Sensor (CKPS)
7. Heated Oxygen Sensor (HO2S, Sensor 1)
8. Injector
11. Knock Sensor
12. CVVT Oil Control Valve (OCV)
15. CVVT Oil Temperature Sensor (OTS)
14. ECM
16. Purge Control Solenoid Valve (PCSV)
17. Main Relay
18. Ignition Coil
20. Heated Oxygen Sensor (HO2S, Sensor 2)
