2009 Kia Spectra L4-2.0LFACTORY OEM SERVICE PROCEDURE
Cylinder Head
Note: "Head Bolts are Reusable"
Cylinder Head

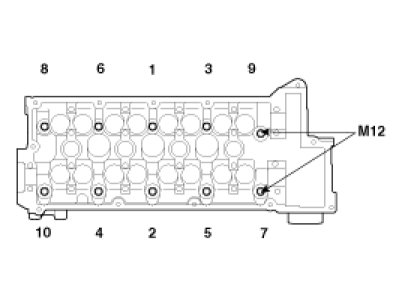

Using 8 mm and 10 mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.
Tightening torque
M10 22.6 - 26.5 (2.3 - 2.7, 16.6 - 19.5) + (60° ~ 65°) + (60° ~ 65°)
M12 27.5 - 31.4 (2.8 - 3.2, 20.3 - 23.1) + (60° ~ 65°) + (60° ~ 65°)
