2009 Kia Sedona BaseFACTORY OEM SERVICE PROCEDURE
[Throttle Position Sensor]

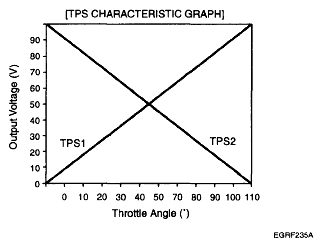

THROTTLE POSITION SENSOR SPECIFICATION
| Throttle Angle (°) | Output Voltage (V) [Vref = 5.0V] | |
|---|---|---|
| TPS1 | TPS2 | |
| 0° | 0V | 5.0V |
| 10° | 0.5V | 4.5V |
| 20° | 0.9V | 4.1V |
| 30° | 1.4V | 3.6V |
| 40° | 1.8V | 3.2V |
| 50° | 2.3V | 2.7V |
| 60° | 2.7V | 2.3V |
| 70° | 3.2V | 1.8V |
| 80° | 3.6V | 1.4V |
| 90° | 4.1V | 0.9V |
| 100° | 4.5V | 0.5V |
| 110° | 5.0V | 0V |
SENSOR RESISTANCE SPECIFICATION
| Item | Sensor Resistance |
|---|---|
| TPS1 | 4.0-6.0kΩ at 20°C (68°F) |
| TPS2 | 2.72-4.08kΩ at 20°C (68°F) |
