2009 Kia Rondo V6-2.7LFACTORY OEM SERVICE PROCEDURE
Spark Plug: Service and Repair
REPLACEMENT
SPARK PLUG
1. Remove the ignition coil connector(A).
2. Remove the ignition coil.
3. Using a spark plug socket, remove the spark plug.
CAUTION:
Be careful that no contaminates enter through the spark plug holes
4. When replacing the spark plug, always use the long reach type spark plug.
(1) Color Marking (Tip)
A. [2.7L]
Unleaded : Yellow Marking
Leaded : Green Marking
(2) Length(Tip-Tip / PT Length)
A. [2.7L]
B. 83.2mm/ 26.5mm
C. Others: The length is different from the specification above.
(3) Part ID
A. [U2.7]
Unleaded : ILFR5B11
Leaded : LFR5A
ON-VEHICLE INSPECTION
INSPECT SPARK PLUG

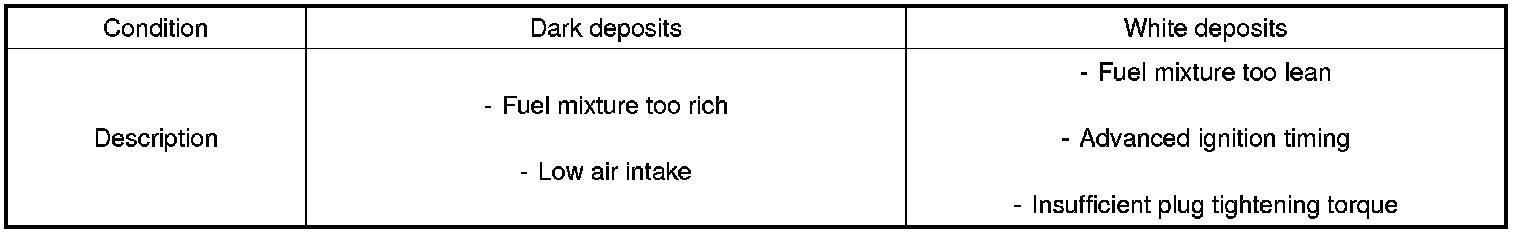

1. Inspect the electrodes(A) an ceramic insulator(B).
INSPECTION OF ELECTRODES
2. Check the electrode gap (A).
Standard : 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
