2009 Kia Rondo L4-2.4LFACTORY OEM SERVICE PROCEDURE
Main Bearing Cap Bolt
Main Bearing Cap Bolt
Tightening torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 120°

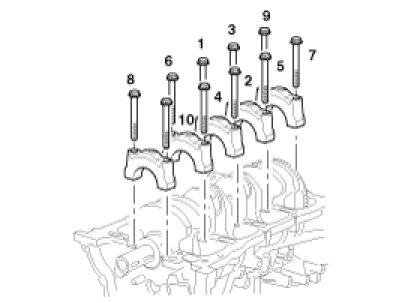

Install and uniformly tighten the 10 bearing cap bolts (A), in several passes, in the sequence shown.
Tightening torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft)
Retighten the bearing cap bolts by 120° in the numerical order shown.
