2009 Kia Rondo L4-2.4LFACTORY OEM SERVICE PROCEDURE

Transmission Position Sensor/Switch: Testing and Inspection








INSPECTION

1. Check for the starter motor when the ignition switch is at 'START' position and the shift lever at 'P' or 'N' range.
2. Check for the rear lamp when the ignition switch if it does not work properly.
3. Check for the inhibitor switch if it does not work properly.
4. If the inhibitor switch is not fixed in a proper position, reassemble it in the right position.
5. Re-check 1 and 2 procedures.
6. Using a scan tool, confirm the DTCs.
7. Disconnect the battery (-) terminal and the inhibitor switch.

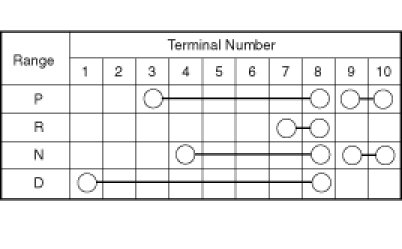

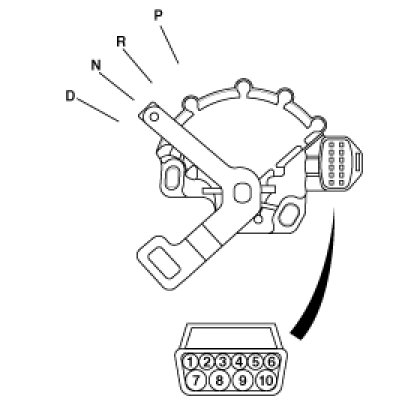

8. Check for continuity between terminals at the switch connector.

Factory service manual diagram




Factory service manual diagram



9. If there is not continuity between the terminals in the table above for each switch position, replace the inhibitor switch.
