2009 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE

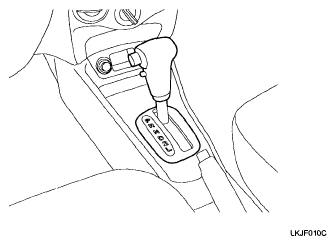

Shift Lever: Installation
- Installation is the reverse of removal.
- After assembling, check the followings.
- When shifting with each position, lever must be operated securely without friction and free from looseness, noise and so on.
- When lever shifting, it shall not be stopped easily between each positions.
- When lever should be stopped between "P" and "R" position intentionally. It should not be shifted to "R" position by vibration added for lever assembly.
- Free from noise when being shifted from "R" to "N", push button being released.
- Slider must be operated smoothly between each position.
- Slider must be operated smoothly without looseness, sticking and noise.
- Shift lock must be operated well.
