2009 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Shift Lever: Disassembly

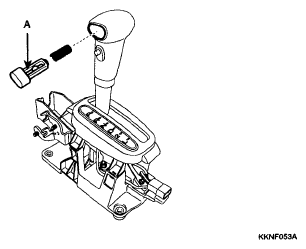

Remove the push button (A) from the knob sub assembly.

Fig 1: Removing Push Button
Courtesy of KIA MOTORS AMERICA, INC.

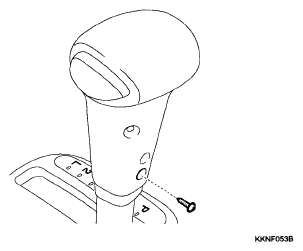

Remove the knob sub assembly from the lever sub assembly (Screw: 1EA).

Fig 2: Removing Knob Sub Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the indicator assembly (A).

Fig 3: Identifying Indicator Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the detent spring (A) (Bolt: 1EA).

Fig 4: Identifying Detent Spring
Courtesy of KIA MOTORS AMERICA, INC.

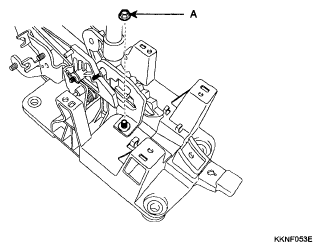

Loosen the bracket sub assembly nut (A).

Fig 5: Identifying Bracket Sub Assembly Nut
Courtesy of KIA MOTORS AMERICA, INC.

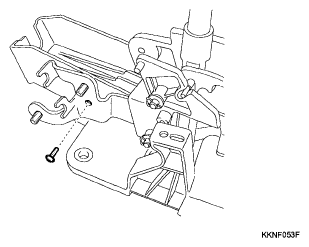

Remove the screw.

Fig 6: Identifying Screw
Courtesy of KIA MOTORS AMERICA, INC.

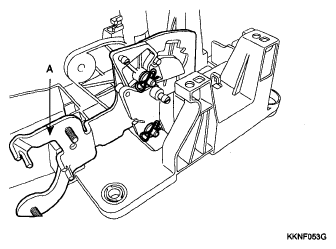

Disassemble the bracket sub assembly (A) after removing the cotter pin (2EA).

Fig 7: Identifying Bracket Sub Assembly
Courtesy of KIA MOTORS AMERICA, INC.

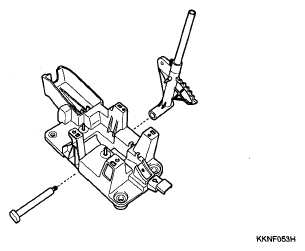

Disassemble the hinge shaft from the lever sub assembly.

Fig 8: Identifying Hinge Shaft
Courtesy of KIA MOTORS AMERICA, INC.
