2009 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Floor Console Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the front seat. See REPLACEMENT .
After disconnecting the console switch assembly (A), remove the connector.

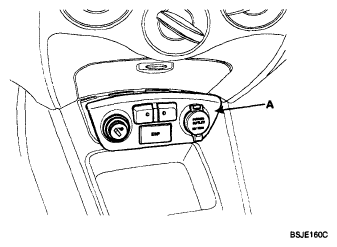

Fig 1: Identifying Console Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the console upper cover (A).

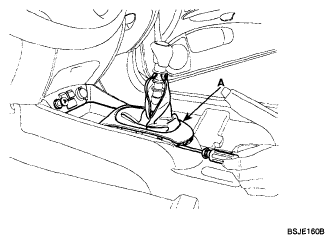

Fig 2: Identifying Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the parking brake cover (A).

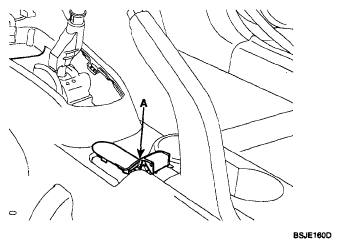

Fig 3: Identifying Parking Brake Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosening the console mounting bolt and clip, remove the console assembly (A).

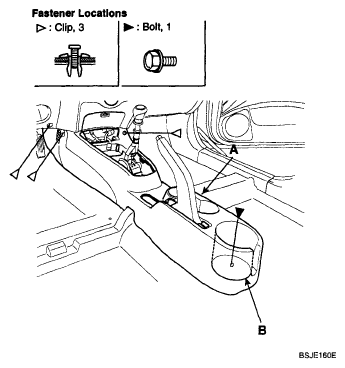

Fig 4: Identifying Console Assembly, Mounting Bolt And Clips
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
