2009 Kia Optima V6-2.7LFACTORY OEM SERVICE PROCEDURE
Oil Pump
Oil Pump Case

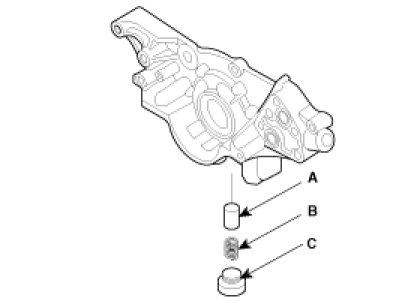

Assembly the relief spring(B) and the relief plunger(A) and tighten the plug(C).
Tightening torque 39.2 - 49.0 Nm (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)
Oil Pump Case
Tightening torque 18.6 - 23.5 Nm (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
