2009 Kia Optima V6-2.7LFACTORY OEM SERVICE PROCEDURE
Cylinder Head
NOTE: Head bolts are reusable
Cylinder Head

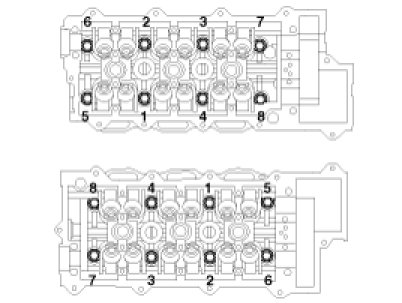

Tighten the cylinder head bolts with the plain washers in several steps as following order.
NOTE:
- In assembling washers, the marked surface should face upward.
- In installing the cylinder head bolts, apply engine oil on the thread of the bolts and the surface of the washers.
Tightening torque 24.5 Nm (2.5 kgf.m, 18.1 lb-ft) + 60° + 45°
