2009 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Heated Glass Control Module: Testing and Inspection
Inspection

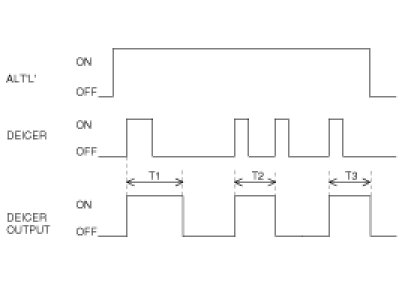

While operating the components, check whether the operations are normal as shown in the timing chart.
1. Once ALT "L" is ON, if the defogger is switched ON, the defogger will stay ON for 20 minutes duration.
2. If defogger switch is pressed again (see Step 1), or if ignition is switched OFF, the defogger will shut OFF.
T1 : 20 ± 1 min.
T2 : MAX 20 ± 1 min.
