2009 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Ignition Switch: Service and Repair
Replacement
1. Disconnect the negative (-) battery terminal.

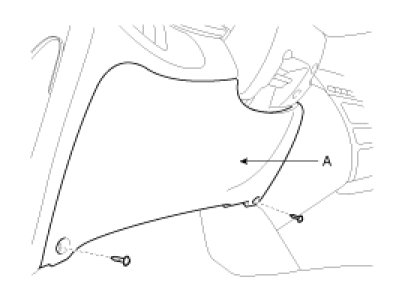

2. Remove the driver lower crash pad panel (A).

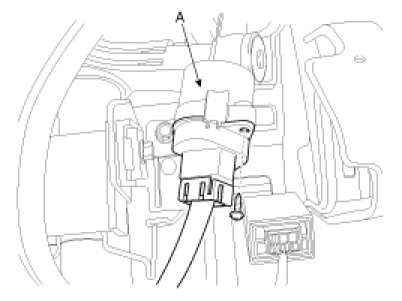

3. Remove the ignition switch (A) after loosening the screw and disconnecting the 6P connector.
4. Remove the steering column shaft .

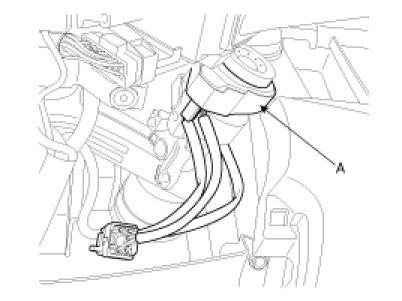

5. Remove the key warning switch and key illumination lamp (A) after loosening the screws and disconnecting the 6P connector.

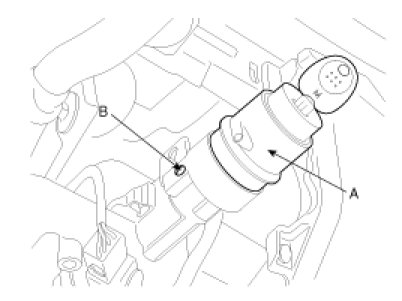

6. If it is necessary to remove the key lock cylinder (A), Remove the key lock cylinder (A) after pushing lock pin (B) with key ON.
7. Installation is the reverse of removal procedure.
