2009 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Oil Pump

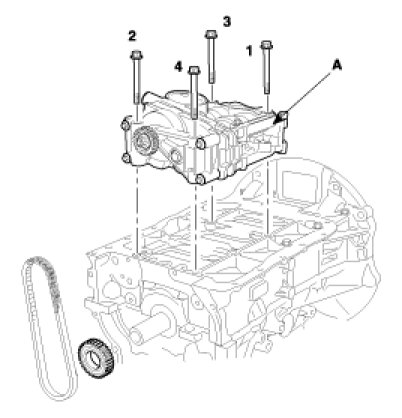

Oil Pump Assembly
Tightening torque 16.7 N.m (1.7 kgf.m, 12.3 lb-ft) + 60° + 60°

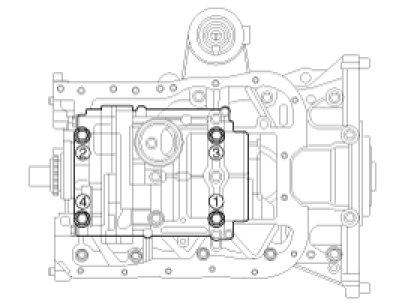

Bolting order
A. Assemble the bolts in order number as shown with seating torque 25.5 N.m (2.6 kgf.m, 18.8 lb-ft)
B. Unfasten the bolts as reverse bolting order. (4-3-2-1)
C. Assemble the bolts as specified bolting order in same increments as follows.
