2009 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Cruise Control Switch: Testing and Inspection
Inspection
Measuring Resistance

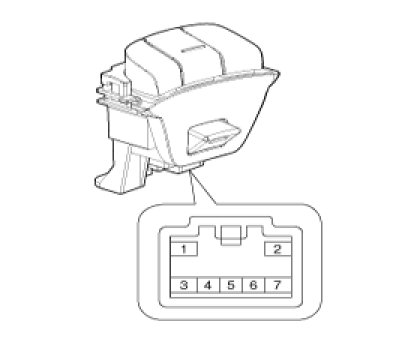

1. Disconnect the cruise control switch connector from the control switch.

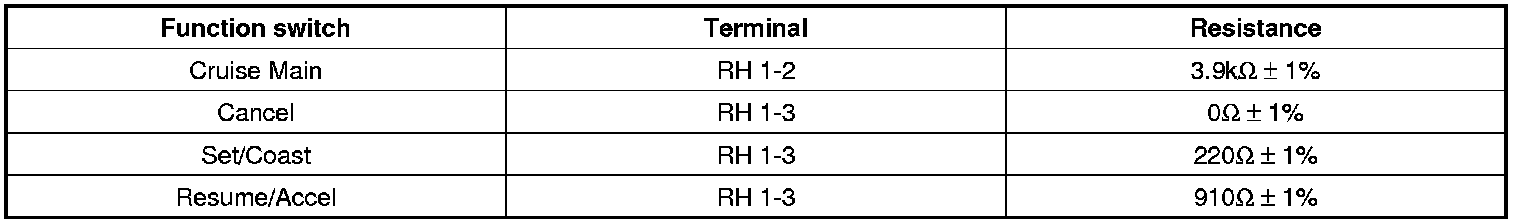

2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
3. If not within specification, replace switch.
Measuring Voltage
1. Connect the cruise control switch connector to the control switch.

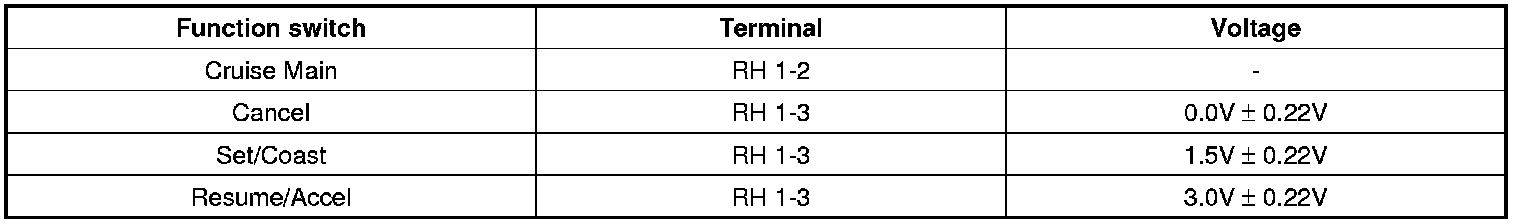

2. Measure voltage between terminals on the harness side connector when each function switch is ON (switch is depressed).
3. If not within specification, replace switch.
