2009 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Keyless Entry: Testing and Inspection
Troubleshooting

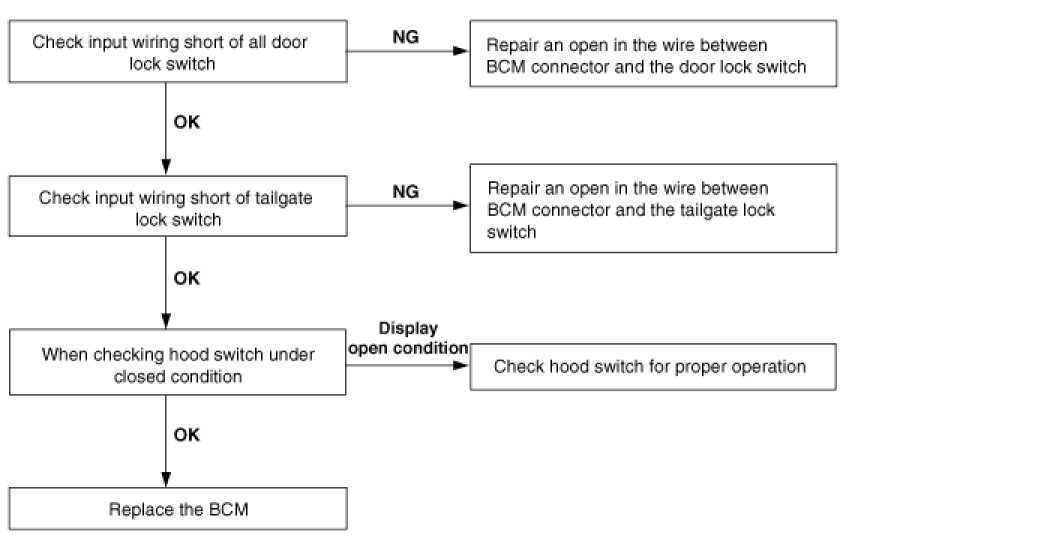

1. Alarm does not work. (Hazard lamp works)

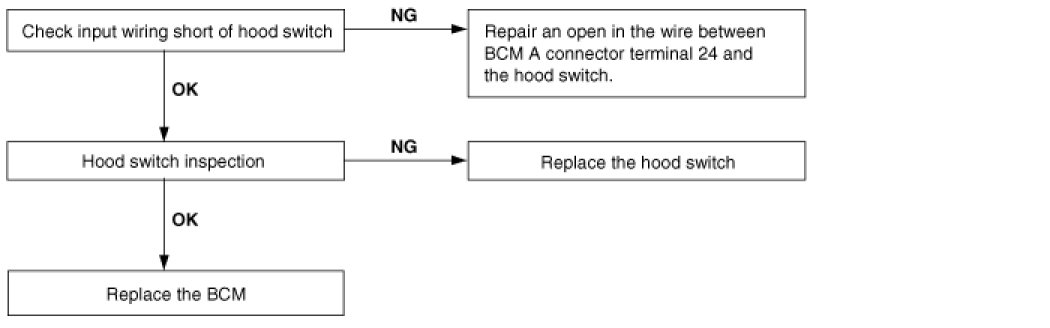

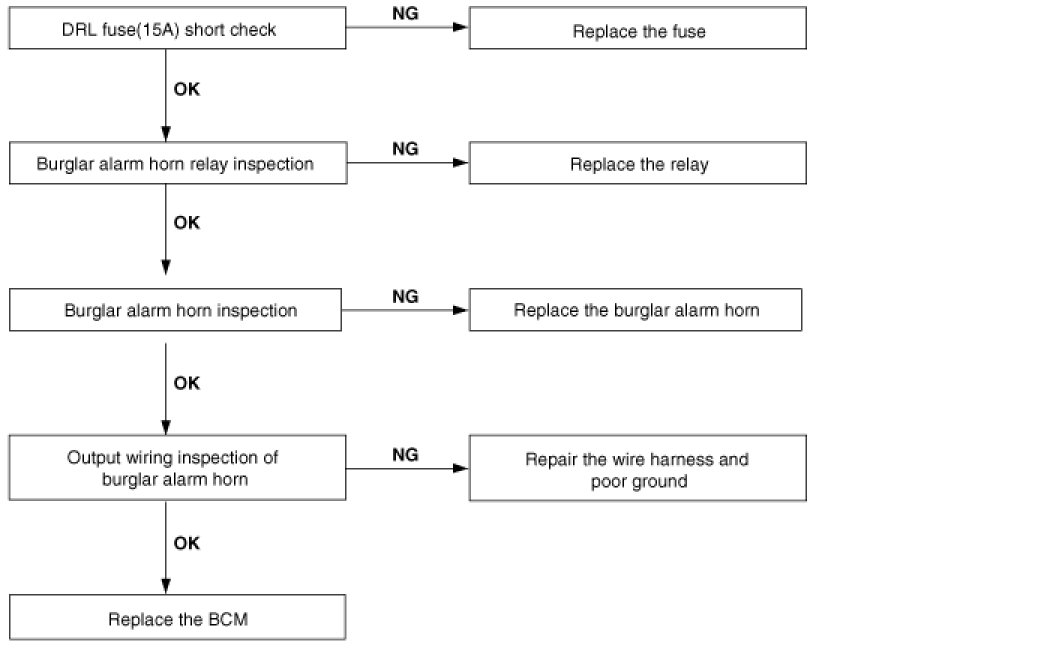

2. When hood is opened inside the car, burglar horn does not work.

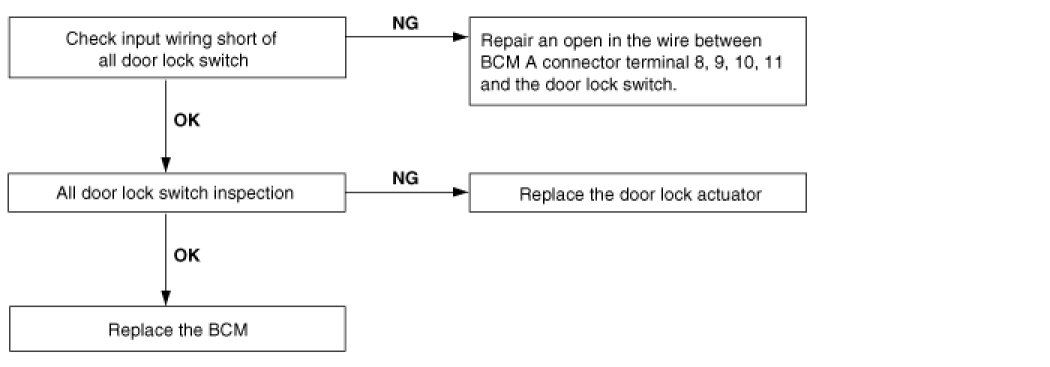

3. When door is opened inside the car, burglar horn does not work (If tailgate and hood is opened, alarm works)

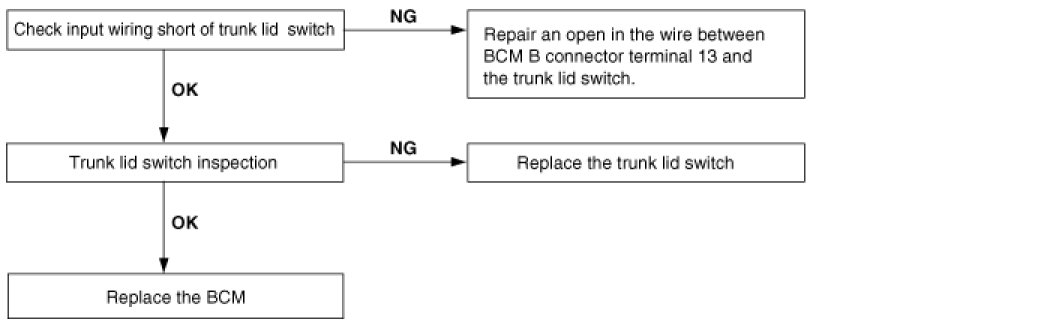

4. When trunk lid is opened inside the car, siren does not work.
5. When the vehicle is locked by the transmitter, central door lock function works but hazard lamp doesn't blink.

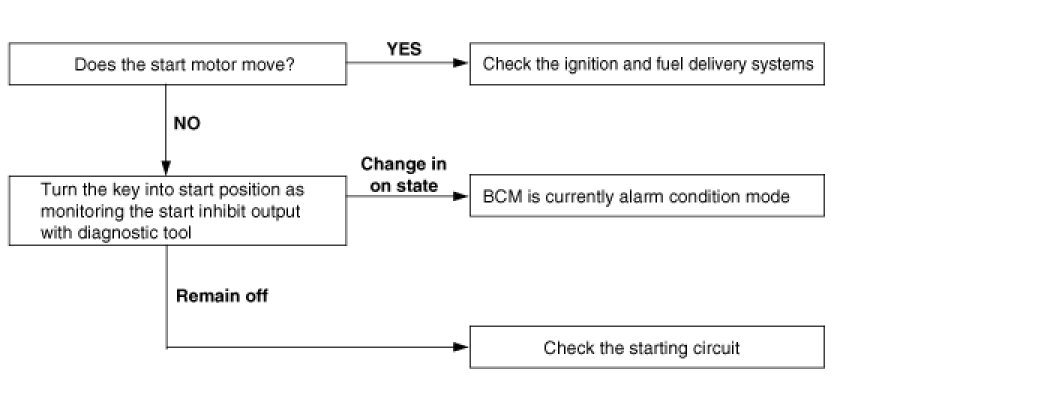

6. Engine does not start, even when the alarm is disarmed.

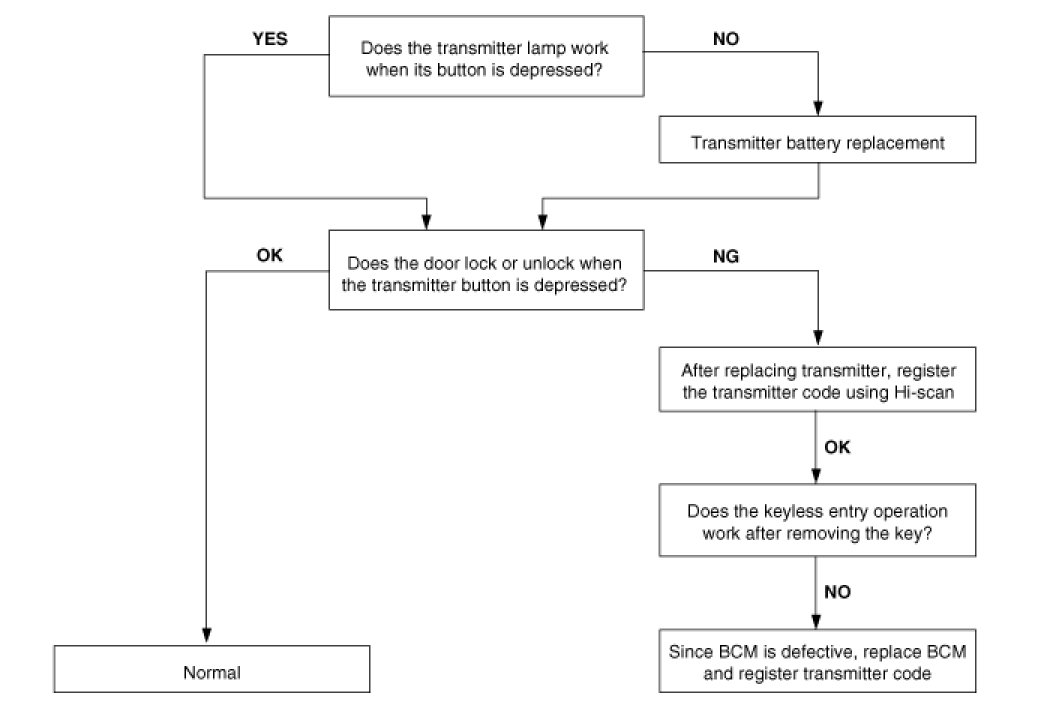

7. Central door lock function works, but keyless entry system does not work.
