2009 Kia Amanti V6-3.8LFACTORY OEM SERVICE PROCEDURE
Repair procedures
Removal
1. Remove the each door trim.

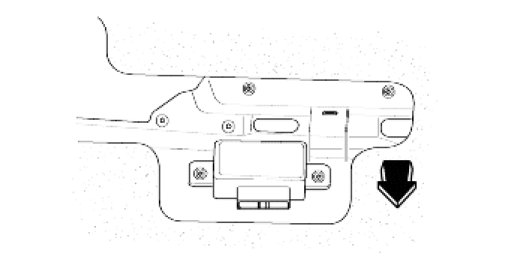

2. Disconnect the connector and loosen the screw, and then remove the safety window ECU.
CAUTION:
The safety window ECU must never be subjected to strong shocks. Do not allow it to fall and do not threw it when handling.
Do not disassembly the safety window ECU.
Installation

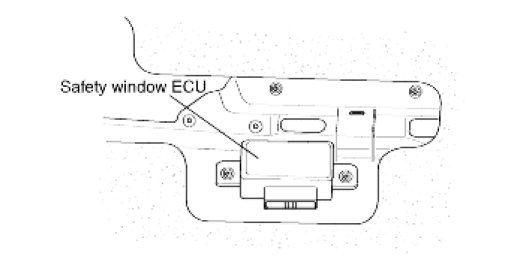

1. Install the safety window ECU as below figure.
2. Make sure of the color of safety window ECU label before installation.
NOTE:
The color of safety window ECU label
Drive : White
Assist : Yellow
Rear : Blue
