Pulse Generator: Replacement

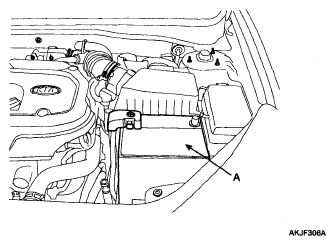

- Remove the battery terminal (A).
- Remove the intake air hose and air clean assembly. Refer to AUTOMATIC TRANSAXLE .
- Disconnect the sensor wire from the control cable mounting bracket.

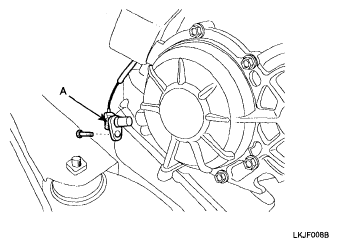

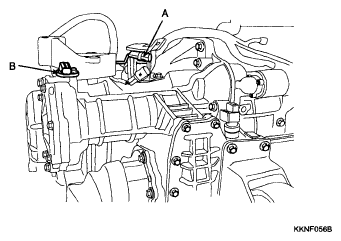

- Remove the pulse generator A, B.
- Disconnect the connector from the sensor.

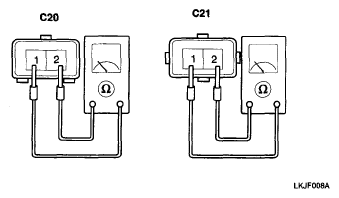

- Measure the pulse generator A, B resistance.
Standard value:
Pulse generator A: 245Β±30Ξ©/20Β°C (68Β°F)
Pulse generator B: 245Β±30Ξ©/20Β°C (68Β°F)
- If the result isn't within the standard value, remove the pulse generator A, B.
