2008 Kia Optima V6-2.7LFACTORY OEM SERVICE PROCEDURE
System Specifications
Tensioner arm (A)
Auto tensioner (A)
Tightening torque: 58.8 - 68.6Nm (6.0 - 7.0kgf.m, 43.4 - 50.6lb-ft)
Timing belt lower cover (A)
Tightening torque: 9.8 - 11.8Nm (1.0 - 1.2kgf.m, 7.8 - 8.7lb-ft)
Timing belt upper cover (A)
Tightening torque: 9.8 - 11.8Nm (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)

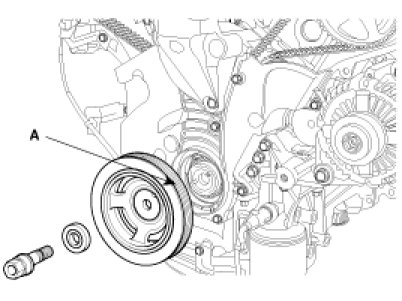

Crankshaft pulley bolt 166.7 - 176.5 Nm (17.0 - 18.0 kgf-m, 123.0 - 130.2 lb-ft)
Auto tensioner (A)
Tightening torque: 58.8 - 68.6Nm (6.0 - 7.0kgf.m, 43.4 - 50.6lb-ft)
Timing belt lower cover (A)
Tightening torque: 9.8 - 11.8Nm (1.0 - 1.2kgf.m, 7.8 - 8.7lb-ft)
Timing belt upper cover (A)
Tightening torque: 9.8 - 11.8Nm (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)
Crankshaft pulley bolt 166.7 - 176.5 Nm (17.0 - 18.0 kgf-m, 123.0 - 130.2 lb-ft)
