2008 Kia Optima V6-2.7LFACTORY OEM SERVICE PROCEDURE
Oil Temperature Sensor For ECM: Testing and Inspection
INSPECTION
The CVVT Oil Temperature Sensor (OTS) is a negative coefficient thermistor used by the PCM to measure engine oil temperature for the purpose of adjusting CVVT calculations.
SPECIFICATION

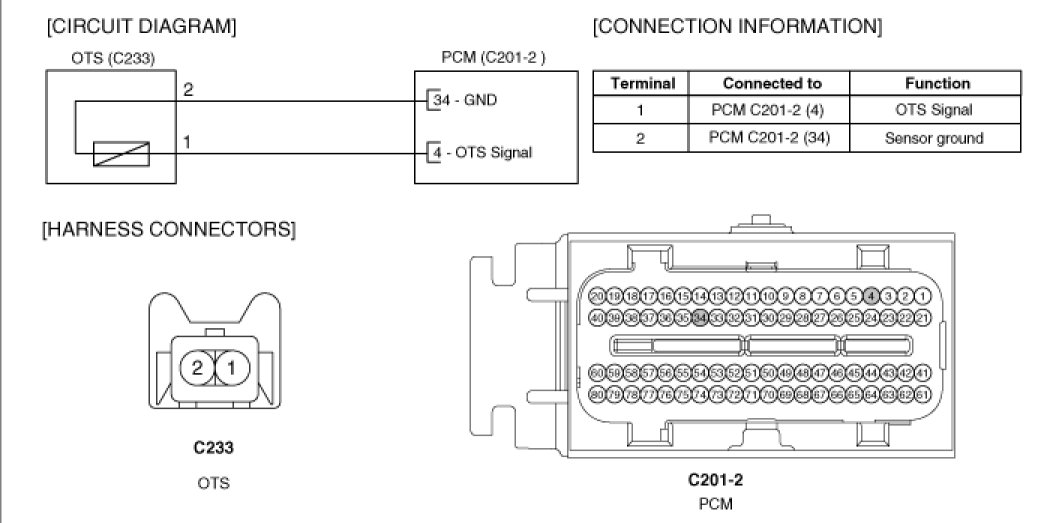

CIRCUIT DIAGRAM
COMPONENT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect OTS connector.
3. Remove the OTS.
4. After immersing the thermistor of the sensor into water (or engine coolant), measure resistance between OTS terminals 1 and 2.
5. Check that the resistance is within the specification.
Specification: Refer to SPECIFICATION.
