2008 Kia AmantiFACTORY OEM SERVICE PROCEDURE
Transaxle Oil Temperature Sensor: Removal
- Remove the battery terminal.
- Lift the vehicle.
- Remove the splash shield.
- Loosen the drain plug and drain the transaxle oil.
- Remove the oil pan.

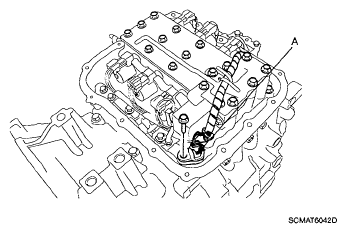

- Disconnect the oil temperature sensor connector and remove the sensor (A) from the valve body.
