2008 Kia AmantiFACTORY OEM SERVICE PROCEDURE

Transaxle Oil Temperature Sensor: Description

TRANSAXLE OIL TEMPERATURE SENSOR DESCRIPTION

Sensor type	Type: Thermistor Use available temperature:-40-160°C (-40-320°F)
Function and feature	Detect the temperature of ATF through the thermistor which is exposed outside. When shifting the range, it is used as the oil pressure control information.

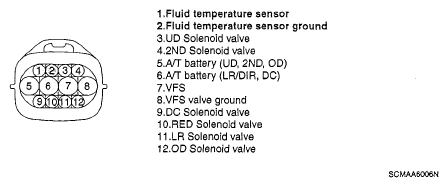

Connector	Courtesy of KIA MOTORS AMERICA, INC.

TRANSAXLE OIL TEMPERATURE SENSOR RESISTANCE CHART

Temp. [°C(°F)]	Resistance (KΩ)	Temp. [°C(°F)]	Resistance (KΩ)
-40 (-40)	139.5	80 (176)	1.08
-20 (-4)	47.7	100 (212)	0.63 ± 0.06
0 (32)	18.6 ± 1.86	120 (248)	0.38
20 (68)	8.1	140 (284)	0.25
40 (104)	3.8	160 (320)	0.16
60 (140)	1.98
