2008 Kia AmantiFACTORY OEM SERVICE PROCEDURE

PWM (Pulse Width Modulation) Solenoid Valve Control Feature

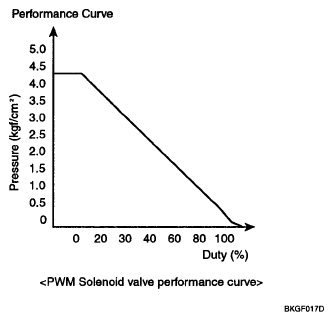

Fig 1: PWM Solenoid Valve Performance Curve

Courtesy of KIA MOTORS AMERICA, INC.

PWM solenoid valve is controlled linearly according to the duty ratio.

PWM SOLENOID VALVE SPECIFICATION

Item	Specification
Type	3way & Normal High
Supply voltage	12V
Coil resistance	2.6 ± 0.2Ω
Control frequency	61.27HZ (30.64HZ of Temp. ≤ -23°C)

Fig 2: Identifying PWM Solenoid Valve

Courtesy of KIA MOTORS AMERICA, INC.
