2008 Kia AmantiFACTORY OEM SERVICE PROCEDURE

Starter Test Procedure: Notes

After the battery test, press ENTER immediately for the starter test.

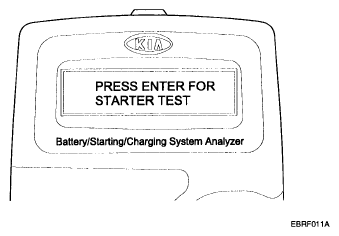

Fig 1: Micro 570 Display - Press ENTER For Starting Test
Courtesy of KIA MOTORS AMERICA, INC.
After pressing ENTER key, start the engine.

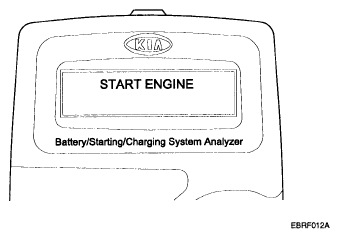

Fig 2: Micro 570 Display - Start Engine
Courtesy of KIA MOTORS AMERICA, INC.
Cranking voltage and starter test results will be displayed on the screen.
Take a relevant action according to the test results by referring to the STARTER TEST RESULTS as given below.

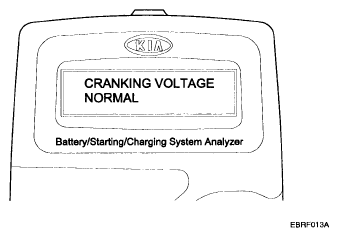

Fig 3: Micro 570 Display - Cranking Voltage Normal
Courtesy of KIA MOTORS AMERICA, INC.
To continue charging system test, press ENTER.
