2007 Kia Spectra5 2.0 1, StandardFACTORY OEM SERVICE PROCEDURE
Inspect Spark Plug Cable

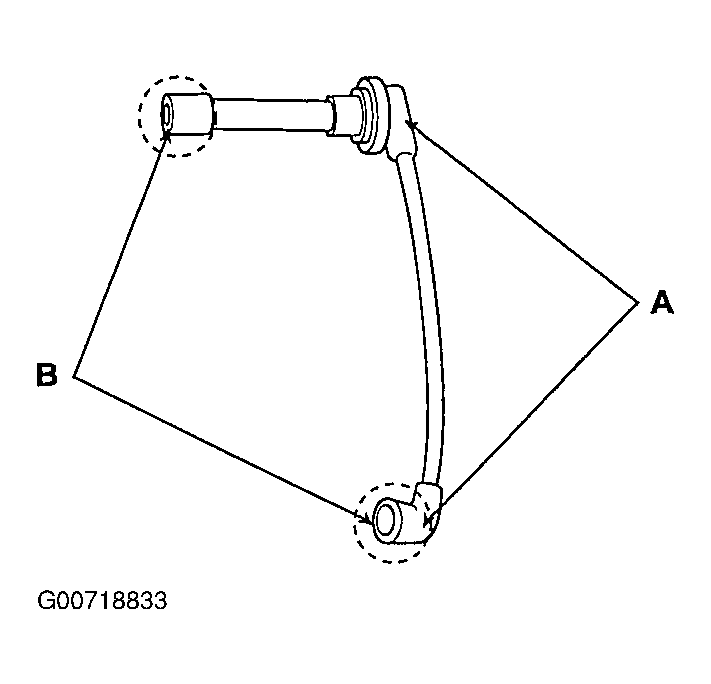

- Carefully remove the spark plug cable by pulling on the rubber boots (A). Check the condition of the spark plug cable terminals (B). If any terminal has surface corrosion, clean it off, and if it is broken or distorted, replace the spark plug cable.

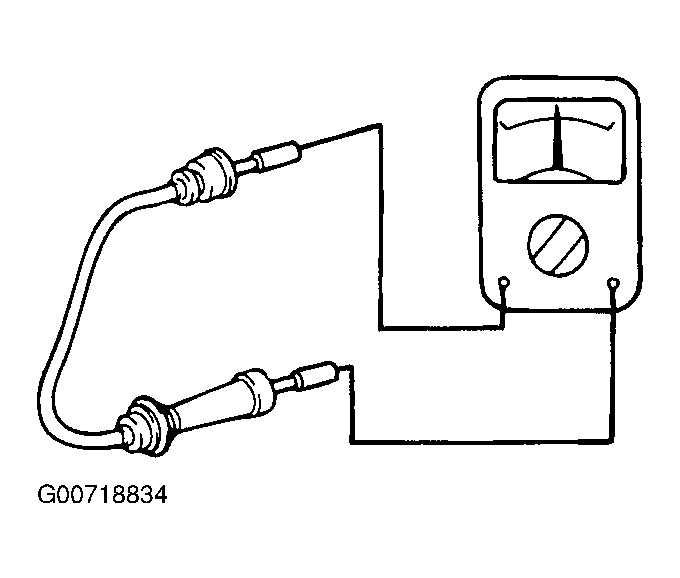

- Connect the ohmmeter probes and measure resistance.
RESISTANCE : 5.6 kΞ© /m +/- 20%
- Resistance should not be higher than 10 kΞ©/m. If resistance is higher, replace the cable.
