ECM Problem Inspection Procedure: Replacement
- Turn ignition switch off.
- Disconnect the battery (-) cable from the battery.

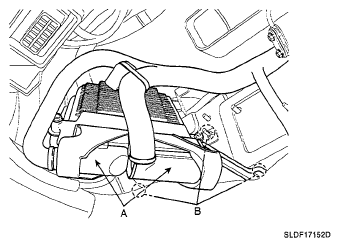

- Disconnect the ECM connector(s) (A).
- Unscrew the ECM mounting bolts/nuts (B) and remove the ECM from the air cleaner assembly.
- Install a new ECM.
ECM mounting bolts: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lbf.ft)
