2007 Kia Spectra5 2.0 1, StandardFACTORY OEM SERVICE PROCEDURE

Body Control Module: Function

  1. TAIL LAMP AUTO CUT
    1. When the KEY is off and Driver side door is opened, TAIL LAMP turns automatically off.
    2. Also, in case the Driver's seat door opened and DOOR WARNING SW is off, the TAIL LAMP turns automatically off.
    3. After turned automatically off, TAIL LAMP turns on and AUTO CUT function cancels in case TAIL LAMP SW is ON after OFF.
    4. If the KEY is ON after the automatic turn-off, TAIL LAMP turns on and AUTO CUT function is canceled.

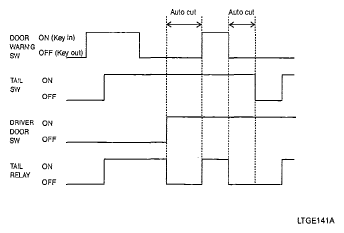

    Fig 1: Blinking Pattern - Tail Lamp Auto Cut
    G05115719Courtesy of KIA MOTORS AMERICA, INC.
  2. IGN KEY HOLE Lighting
    1. When driver's door is open, IGN key hole light should turn on.

      When the driver's door is closed, IGN key hole light should be ON for 30 seconds before it turns itself off.

    2. When the passenger's door is opened, IGN KEY HOLE light should turn on.

      When the passenger's door is closed, IGN KEY HOLE lights should turn on for 30 seconds before it turns itself off.

    3. Remember after checking steps 1 and 2, that as soon as IGN 1 SW is switched on, IGN key hole light should turn OFF immediately. (However, if you're in ARM MODE, IGN key hole lighting should be OFF.)

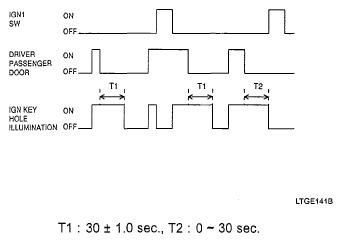

    Fig 2: Blinking Pattern - IGN KEY HOLE Lighting
    G05115720Courtesy of KIA MOTORS AMERICA, INC.
  3. DECAYED ROOM LAMP

    ROOM LAMP OFF STATE

    ROOM LAMP OFF STATE DESCRIPTION CHART (1 OF 3)

    State Description
    First condition Room lamp OFF & IGN1 off & 4Door SW off
    Event IGN1 off & (4Door SW off → on for 100ms)
    Action Change ROOM LAMP ON for 20 min state.
    Output Room Lamp for 20 +/-1 minute.
    ROOM LAMP OFF STATE DESCRIPTION CHART (2 OF 3)

    State Description
    First condition Room lamp OFF & IGN1 off & 4Door SW off
    Event UNLOCK2
    Action Change ROOM LAMP ON for 30s state
    Output Room Lamp for 30 sec.
    ROOM LAMP OFF STATE DESCRIPTION CHART (3 OF 3)

    State Description
    First condition Room Lamp OFF & IGN1 off & 4Door SW off
    Event IGN1 ON & 4DRSW on
    Action Change ROOM LAMP ON state
    Output Room Lamp (No limit time)

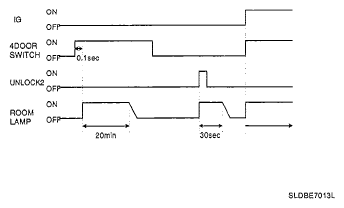

    Fig 3: Blinking Pattern - Decayed Room Lamp
    G05115721Courtesy of KIA MOTORS AMERICA, INC.

    ROOM LAMP ON FOR 30S STATE

    ROOM LAMP ON FOR 30S STATE DESCRIPTION CHART (1 OF 3)

    State Description
    First condition Room lamp ON for 30s & IGN1 OFF
    Event 4Door SW off → on for 100ms
    Action Change ROOM LAMP ON for 20 min state.
    Output Room Lamp for 20 ± 1 minute.
    ROOM LAMP ON FOR 30S STATE DESCRIPTION CHART (2 OF 3)

    State Description
    First condition Room lamp ON for 30s & IGN1 OFF
    Event UNLOCK2
    Action Change ROOM LAMP ON for 30s state.
    Output Room Lamp for 30 sec.
    ROOM LAMP ON FOR 30S STATE DESCRIPTION CHART (3 OF 3)

    State Description
    First condition Room Lamp ON for 30s & IGN1 OFF
    Event IGN1 ON
    Or 30s timer elapsed
    Or ALL DOOR LOCK
    Action Change ROOM LAMP DECAYING state
    Decaying Room Lamp output for 2 ± 0.2 sec off

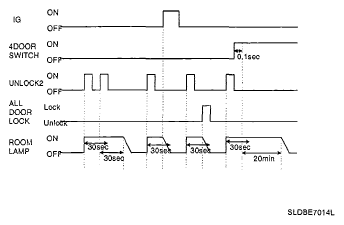

    Fig 4: Blinking Pattern - Room Lamp On For 30S State
    G05115722Courtesy of KIA MOTORS AMERICA, INC.

    ROOM LAMP ON FOR 20MIN STATE

    ROOM LAMP ON FOR 20MIN STATE DESCRIPTION CHART (1 OF 3)

    State Description
    First condition ROOM LAMP ON for 20min & IGN1 OFF
    Event IGN1 ON
    Action Change ROOM LAMP ON state.
    Output Room Lamp (no limit time).
    ROOM LAMP ON FOR 20MIN STATE DESCRIPTION CHART (2 OF 3)

    State Description
    First condition ROOM LAMP ON for 20min & IGN1 OFF
    Event 4Door SW off
    Action Change ROOM LAMP ON for 30s state.
    Output Room Lamp for 30 sec.
    ROOM LAMP ON FOR 20MIN STATE DESCRIPTION CHART (3 OF 3)

    State Description
    First condition ROOM LAMP ON for 20min & IGN1 OFF
    Event (4Door SW off & ALL DOOR LOCK)
    Or 20min timer elapsed
    Action Change ROOM LAMP DECAYING state.
    Decaying Room Lamp output for 2 ± 0.2 sec off.

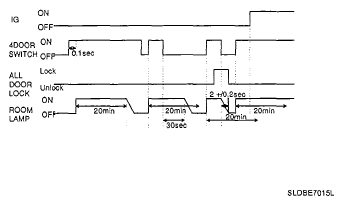

    Fig 5: Blinking Pattern - Room Lamp On For 20Min State
    G05115723Courtesy of KIA MOTORS AMERICA, INC.

    ROOM LAMP DECAYING STATE

    ROOM LAMP DECAYING STATE DESCRIPTION CHART (1 OF 4)

    State Description
    First condition ROOM LAMP DECAYING & IGN1 OFF
    Event 4Door SW off → on for 100ms
    Action Change ROOM LAMP ON for 20 min state.
    Output Room Lamp for 20 ± 1 minute.
    ROOM LAMP DECAYING STATE DESCRIPTION CHART (2 OF 4)

    State Description
    First condition ROOM LAMP DECAYING & IGN1 OFF & 4Door SW off
    Event UNLOCK2
    Action Change ROOM LAMP ON for 30sec state.
    Output Room Lamp for 30 sec.
    ROOM LAMP DECAYING STATE DESCRIPTION CHART (3 OF 4)

    State Description
    First condition ROOM LAMP DECAYING
    Event Room lamp decaying completed
    Action Change ROOM LAMP OFF state.
    STOP Room Lamp output.
    ROOM LAMP DECAYING STATE DESCRIPTION CHART (4 OF 4)

    State Description
    First condition ROOM LAMP DECAYING
    Event IGN1 ON & 4Door SW ON
    Action Change ROOM LAMP ON state.
    Output Room Lamp (no limit time).

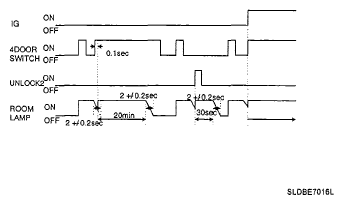

    Fig 6: Blinking Pattern - Room Lamp Decaying State
    G05115724Courtesy of KIA MOTORS AMERICA, INC.

    ROOM LAMP ON STATE

    ROOM LAMP ON STATE DESCRIPTION CHART (1 OF 3)

    State Description
    First condition ROOM LAMP ON & IGN1 ON & 4Door SW on
    Event 4Door SW off
    Action Change ROOM LAMP DECAYING state.
    Decaying Room Lamp output for 2 ± 0.2 sec off.
    ROOM LAMP ON STATE DESCRIPTION CHART (2 OF 3)

    State Description
    First condition ROOM LAMP ON & IGN1 ON & 4Door SW on
    Event IGN1 off.
    Action Change ROOM LAMP ON for 20min state.
    Output Room Lamp for 20 ± 1 minute.
    ROOM LAMP ON STATE DESCRIPTION CHART (3 OF 3)

    State Description
    First condition ROOM LAMP ON & IGN1 ON & 4Door SW on
    Event 4Door SW off & IGN1 OFF
    Action Change ROOM LAMP ON for 30s state.
    Output Room Lamp for 30 sec.

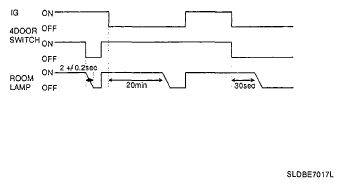

    Fig 7: Blinking Pattern - Room Lamp On State
    G05115725Courtesy of KIA MOTORS AMERICA, INC.
