2007 Kia Spectra5 2.0 1, AutomaticFACTORY OEM SERVICE PROCEDURE
Starter Relay
- Remove the fuse box cover.

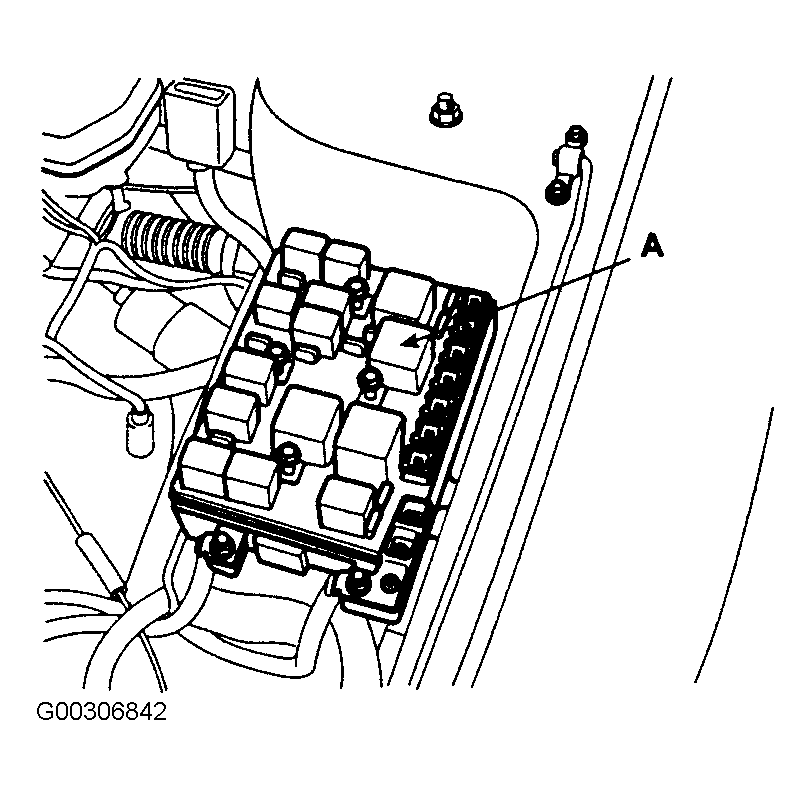

- Remove the starter relay "A". See Fig 1.
- Using an ohmmeter, check that there is continuity between specified terminals. See STARTER RELAY CONTINUITY table.STARTER RELAY CONTINUITY
Terminal Continuity 30-87 NO 85-86 YES - Apply 12V to terminal 85 and ground to terminal 86. Check for continuity between terminals 30 and 87. See STARTER RELAY CONTINUITY table. See Fig 2.
- If there is no continuity, replace the starter relay.
- Install the starter relay.
- Install the fuse box cover.
