2007 Kia Spectra L4-2.0LFACTORY OEM SERVICE PROCEDURE
Manual Transaxle Identification Number Location

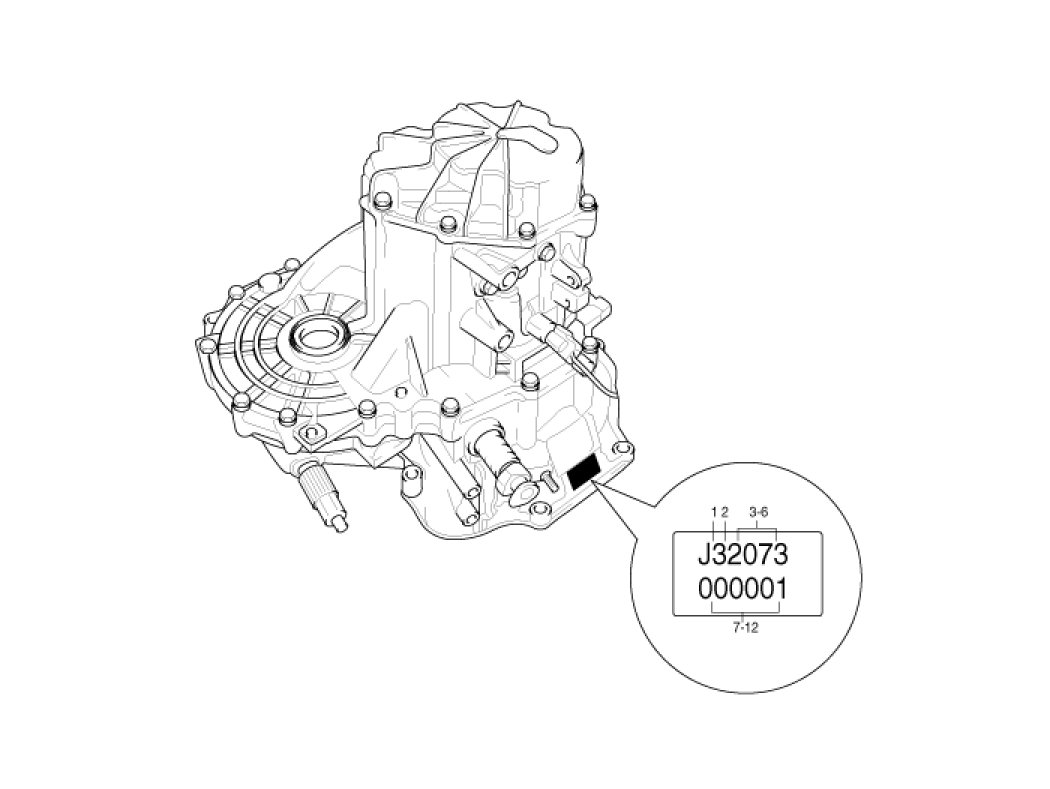

MANUAL TRANSAXLE IDENTIFICATION NUMBER LOCATION
MANUAL TRANSAXLE IDENTIFICATION NUMBER DESCRIPTION
1 : Model
- J = F5BF2
2 : Production year
- 4 = 2004, 5 = 2005
3 - 6 : Gear ratio (Tooth number)
<3 - 4 : Output shaft gear tooth number, 5 - 6 : Differential drive gear tooth number>
-2073 = 73/20 = 3.650(BETA 2.0 CVVT)
7 - 12 : Production sequence number
-000000 - 999999
