2007 Kia Spectra L4-2.0LFACTORY OEM SERVICE PROCEDURE
Ignition Switch: Service and Repair
REPLACEMENT
1. Remove the steering column shaft .

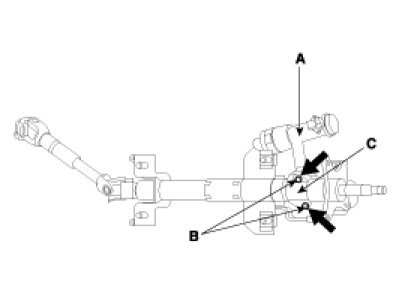

2. If it is necessary to remove the key lock assembly (A), use a punch to make a groove on the head of the special bolt (B), and then use a screwdriver to remove the key lock assembly mounting bracket (C).
3. Disassembly the key lock assembly (A) from the steering column and shaft assembly (B).
4. Installation is the reverse of removal procedure.
