2007 Kia Spectra L4-2.0LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair
REPLACEMENT
1. Turn ignition switch off.
2. Disconnect the battery (-) cable from the battery.

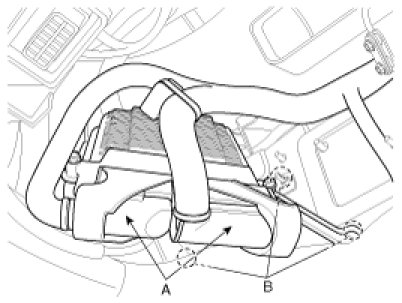

3. Disconnect the ECM connector(s) (A).
4. Unscrew the ECM mounting bolts/nuts (B) and remove the ECM from the air cleaner assembly.
5. Install a new ECM.
ECM mounting bolts: 9.8 - 11.8 Nm (1.0 - 1.2 kgf-m, 7.2 - 8.7 lbf-ft)
