Engine Control Module (ECM): Replacement
- Turn ignition switch off.
- Disconnect the battery (-) cable from the battery.

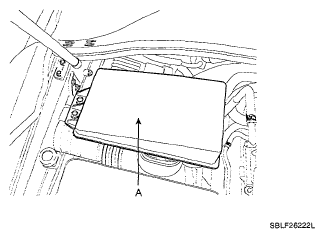

- Remove the resonator (A).

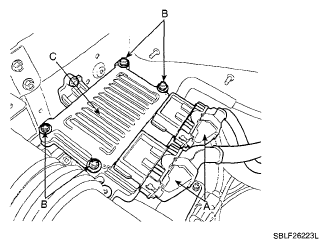

- Disconnect the ECM connectors (A).
- Unscrew the ECM mounting bolts (B) and remove the ECM from the bracket (C).
- Install new ECM
ECM installation bolts : 9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)
