2007 Kia Sedona BaseFACTORY OEM SERVICE PROCEDURE

Charging Systems: Alternator: Disassembly

Remove the generator cover (A) using a screw driver (B).

Fig 1: Identifying Generator Cover
Courtesy of KIA MOTORS AMERICA, INC.

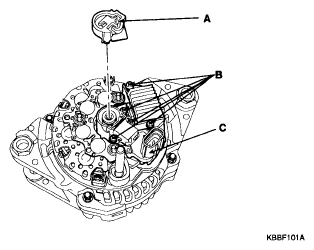

Remove the slip ring guide (A).
Loosen the mounting bolts (B) and disconnect the brush holder assembly (C).

Fig 2: Identifying Slip Ring Guide And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

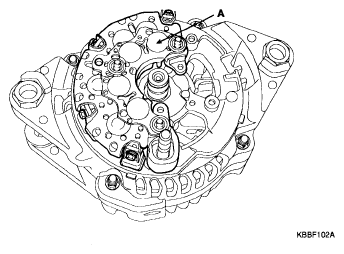

Remove the rectifier (A) with 4 screw.

Fig 3: Identifying Rectifier
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley (A) and spacer.

Fig 4: Identifying Pulley
Courtesy of KIA MOTORS AMERICA, INC.

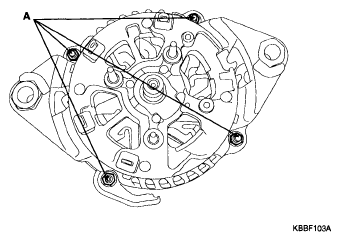

Loosen the 4 nuts (A).

Fig 5: Identifying Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the rotor (A) and cover (B).

Fig 6: Identifying Rotor And Cover
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse order of disassembly.
